All weather Enclosure on Pole Mount Platform with Moving Head High-Brightness Projector

1. Overview

This system is an integrated outdoor projection solution designed for permanent or semi-permanent installation. It combines a high-performance moving-head projector with a robust, weatherproof housing, all mounted on a versatile pole platform. It’s engineered for dynamic, large-scale visual displays in architectural projection mapping, outdoor advertising, event venues, and public installations.

2. All-Weather (Environmental) Enclosure:

• Construction: Made from heavy-duty, corrosion-resistant materials such as powder-coated aluminum or stainless steel.

• Sealing: Rated to a high IP (Ingress Protection) standard (e.g., IP65, IP66) or NEMA 4X, ensuring complete protection against dust, rain, snow, and hose-directed water.

• Thermal Management: Integrated active thermal control system with heating, cooling (air-conditioning), and fans. This maintains a stable internal temperature, preventing condensation, overheating in summer, and ensuring reliable operation in extreme cold.

• Security: Includes lockable, tamper-resistant doors or panels for protection against vandalism and unauthorized access.

• Maintenance: Designed for front or rear serviceability, allowing for lamp/laser module replacement and cleaning with minimal disassembly.

3. Pole-Mount Platform:

• Structure: A rigid, engineered mounting bracket or platform specifically designed to attach securely to a vertical pole (typically round or square). The platform holds the enclosed projector at a fixed angle or provides a base for the moving-head to operate from.

• Adjustability: Often includes adjustable tilt or azimuth plates on the platform to set the initial “home” position of the enclosure.

• Load & Wind Rating: Engineered to support the significant weight of the enclosure and projector while withstanding high wind loads. Requires a structurally sound pole (e.g., light pole, custom pole) of specified diameter and strength.

• Cable Management: Provides secure pathways and entries for power and data cables (e.g., powercon, etherCON for DMX/ArtNet/sACN), often with waterproof gland fittings.

4. Primary Applications

• Permanent Architectural Projection Mapping: On museums, landmarks, and corporate buildings.

• Theme Parks & Attractions: For nighttime spectaculars and immersive experiences.

• Drive-Through Events & Festivals: As a dynamic, programmable visual anchor.

• High-Impact Outdoor Advertising: In high-traffic public spaces.

• Stadiums & Large Venues: For pre-show entertainment and dynamic displays.

5. Key Advantages

• All-Weather Reliability: Enables 24/7/365 operation in virtually any climate.

• Dynamic Creativity: The moving-head capability adds a layer of motion and flexibility impossible with fixed projectors.

• Space-Efficient Installation: Utilizes existing or new pole infrastructure, minimizing ground footprint.

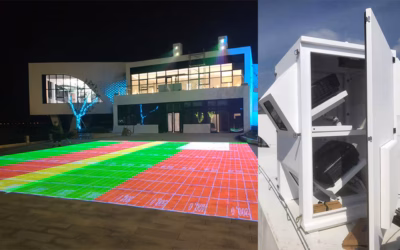

6. Enclosure Photos
