All-Weather Thermal Protection Projector Enclosure for Christie DWU2022-HS with Custom Ground-Mapping Pole Mount
Transform Any Surface Into a Dynamic Canvas — In Any Weather
Unleash the full potential of your Christie DWU2022-HS with an integrated All-Weather Thermal Protection Enclosure and Custom Ground-Mapping Pole Mount System — engineered to withstand the elements and deliver flawless 3D projection on floors, plazas, parks, and stages. Whether you’re mapping a city square, creating immersive festival grounds, or activating a brand experience, this solution offers unmatched reliability, precision, and flexibility in challenging environments.
Built for Every Climate, Engineered for Every Condition
Our IP65-rated thermal enclosure is purpose-built to protect the Christie DWU20222-HS from extreme temperatures, humidity, rain, dust, and wind, allowing 24/7 outdoor operation with confidence.
IP65 Sealed Housing – Complete protection against dust, water jets, and moisture intrusion.
Active Thermal Management System – Maintains consistent internal temperature between 18–25°C, even in ambient temperatures from -25°C to +50°C.
Dust-Proof & Corrosion-Resistant Construction – Ideal for coastal, desert, or urban installations.
Custom Ground-Mapping Pole Mount: Precision from the Ground Up
A stable, flexible mounting solution is critical for ground-based 3D mapping. Our custom-engineered pole mount offers secure positioning with the adjustability needed to create seamless, large-scale visual experiences on horizontal surfaces.
Height-custom (6.0-12.0meters) – Achieve the perfect throw ratio and coverage area.
Tilt Mechanism (0°–45° downward) – Precisely angle the projection for distortion-free ground mapping.
Heavy-Duty Base Options – Choose from permanent concrete anchoring, bolt-down plates, or portable weighted bases.
Integrated Cable Routing – Protects and organizes power and signal lines within the pole.
Designed for 3D Ground Mapping & Interactive Experiences
This system is tailored for applications where projection meets the ground — turning static surfaces into interactive storytelling platforms.
Interactive Floor Projections – Museums, exhibitions, retail spaces
Outdoor Festival & Event Grounds – Immersive walkways and staged environments
Architectural & Public Space Activation – Plazas, parks, building facades with ground extensions
Temporary & Permanent Installations – Themed entertainment, brand activations, public art
Technical Specifications
| Enclosure | Pole Mount |
|---|---|
| Model Compatibility: Christie DWU2022-HS | Max Load Capacity: 800 kg |
| Protection Class: IP65 | Material: Powder-coated steel |
| Cooling System: Active HVAC (3000–5000 BTU) | Height Adjustment: Manual / motorized options |
| Viewing Window: Optical glass, AR-coated, heated | Base Types: Fixed, mobile, or hybrid |
| Power: 220–240V, 15A | Wind Rating: Up to 100 km/h with ballast |
| Remote Monitoring: Temperature, humidity, alerts | Finish: Black or custom color available |
Complete System Includes
All-Weather Thermal Enclosure – Custom-fitted for Christie DWU2022-HS
Adjustable Pole with Tilt
Mounting Base (selected per installation type)
Thermal Control Unit & Wiring
Service Kit & User Manual
Why Choose This Ground-Mapping System?
All-Season Ready – Operates reliably in snow, rain, heat, or wind.
Quick Setup & Calibration – Designed for both touring and permanent use.
Protects High-Value Equipment – Extends the life of your projector.
Professional Integration – Clean, low-profile design blends into any venue.
Scalable – Can be used in multi-projector arrays for expansive coverage.

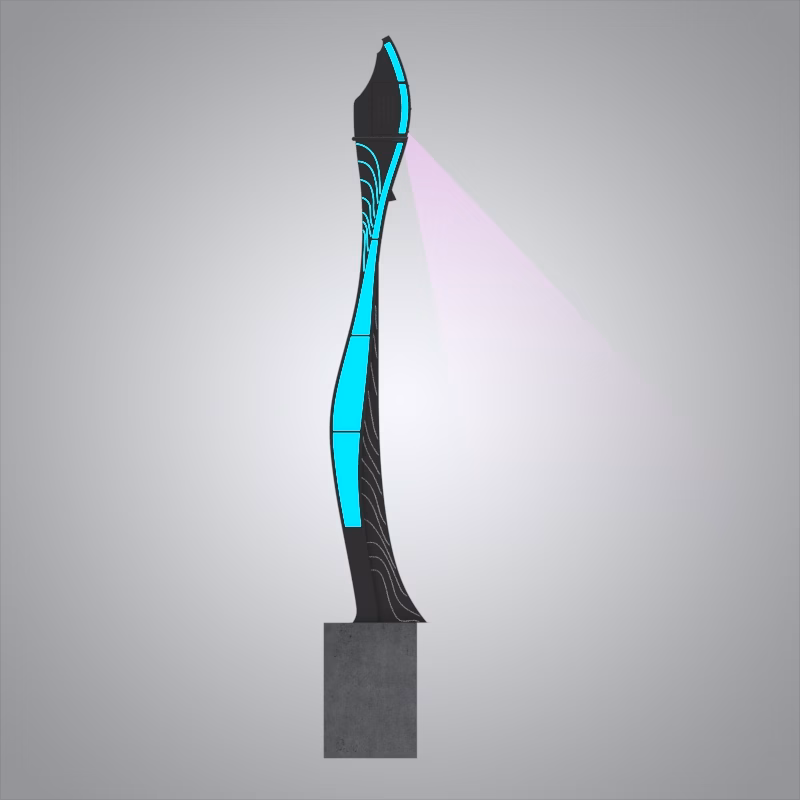

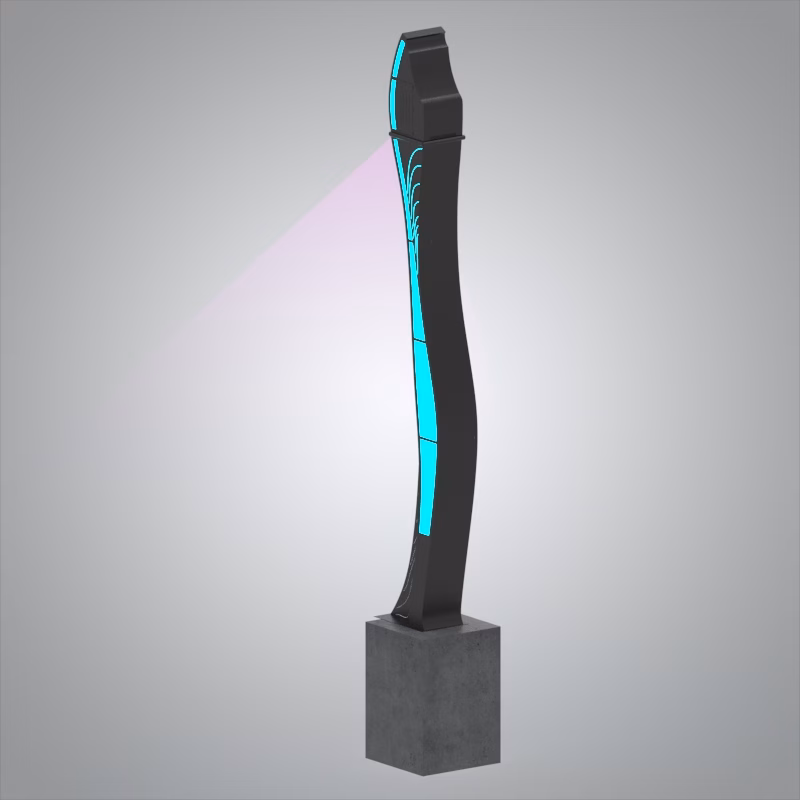

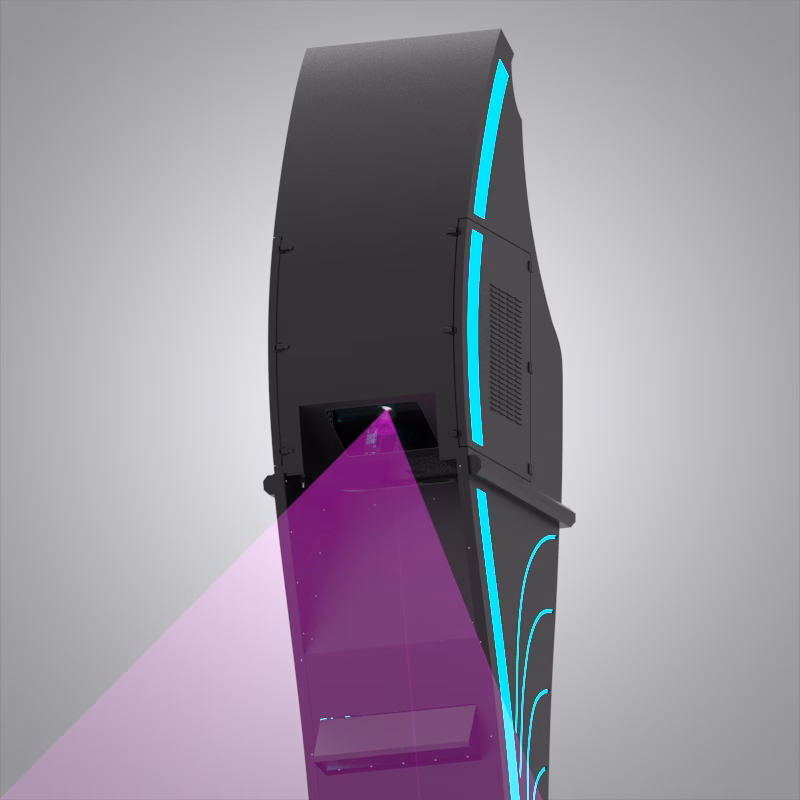

Design Drawing

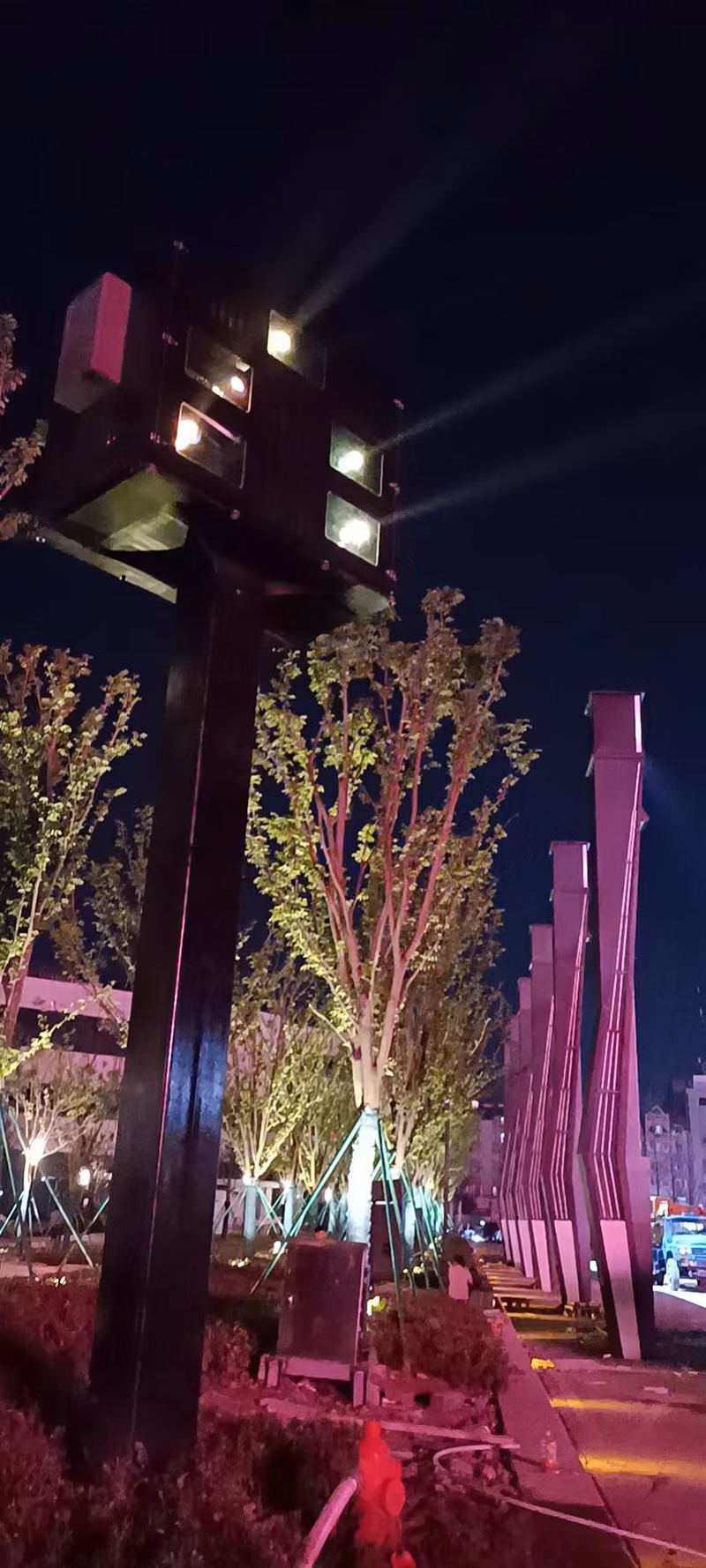

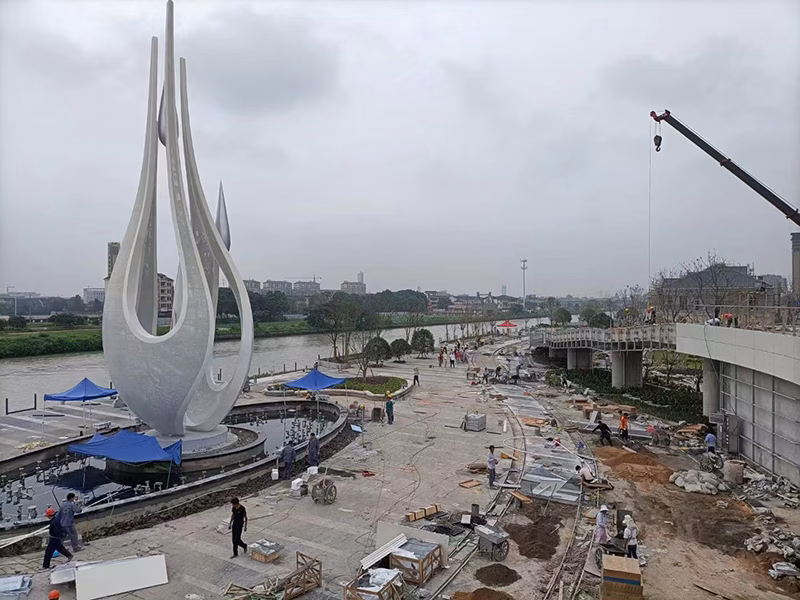

On The Site of Installation Photos
