G100-W22 Quad, Triple & Dual All-Weather Projector Housings with Custom Pole Mount

Versatile, High-Density Projection for Demanding Outdoor Environments

The G100-W22 Modular Array System is a revolutionary pole-mounted projection solution offering unparalleled configuration flexibility. With interchangeable Quad (4-projector), Triple (3-projector), and Dual (2-projector) all-weather housings, this system adapts to your exact brightness, coverage, and budget requirements while maintaining industrial-grade environmental protection and thermal management.

MODULAR DESIGN PHILOSOPHY

Interchangeable Housing Modules

• Quad Housing: 4 projectors – Maximum brightness density for large-scale mapping

• Triple Housing: 3 projectors – Balanced performance for medium-to-large installations

• Dual Housing: 2 projectors – Cost-effective solution for standard applications

• Mix & Match: Deploy different configurations on the same pole system

Universal Mounting Interface

• Standardized Bracket System: All housings use identical mounting hardware

• Quick-Change Mechanism: Swap configurations in under 30 minutes

• Weight-Balanced Design: Each housing engineered for identical load distribution

CUSTOM POLE INFRASTRUCTURE

Engineered Support Structure

• Modular Pole Sections: 1.5m segments allow custom heights from 3m to 15m

• Load Capacity: Rated for 500kg maximum dynamic load (including housings, projectors, and environmental factors)

• Internal Cable Management: Concealed conduit routing for power, data, and coolant lines

ALL-WEATHER PROTECTION SYSTEM

Environmental Sealing

• IP65 Rating Standard: Dust-tight and protected against water jets

• Corrosion-Resistant Construction: Marine-grade aluminum with stainless hardware

• Wind Resilience: Tested to 150 km/h (93 mph) with all housings mounted

Intelligent Thermal Management

• Per-Projector Cooling Zones: Independent temperature control for each projector

• Adaptive Climate Control: Automatically adjusts based on ambient conditions and projector load

• Condensation Prevention: Heated optical windows and humidity control

TECHNICAL SPECIFICATIONS BY CONFIGURATION

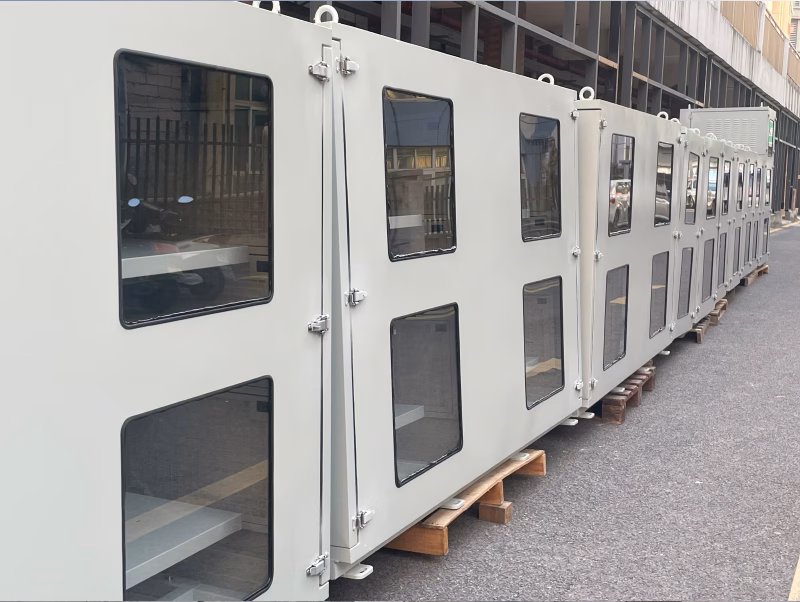

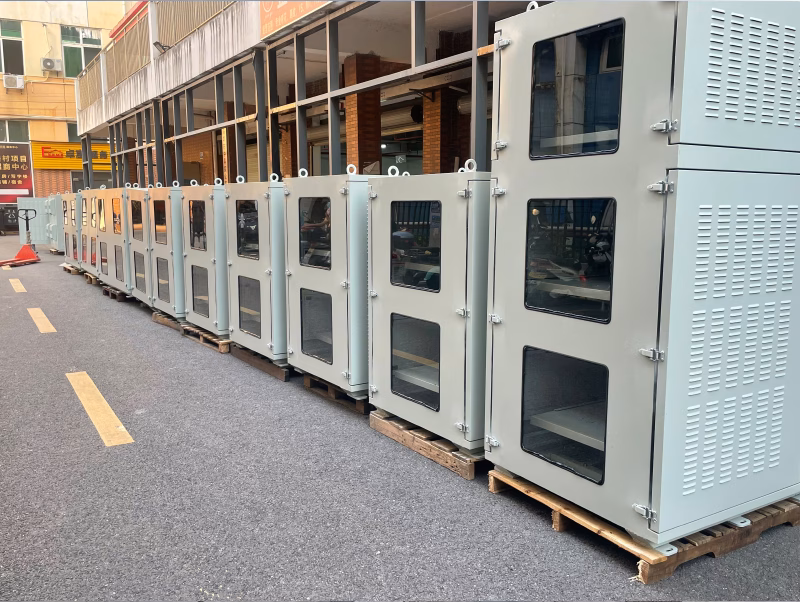

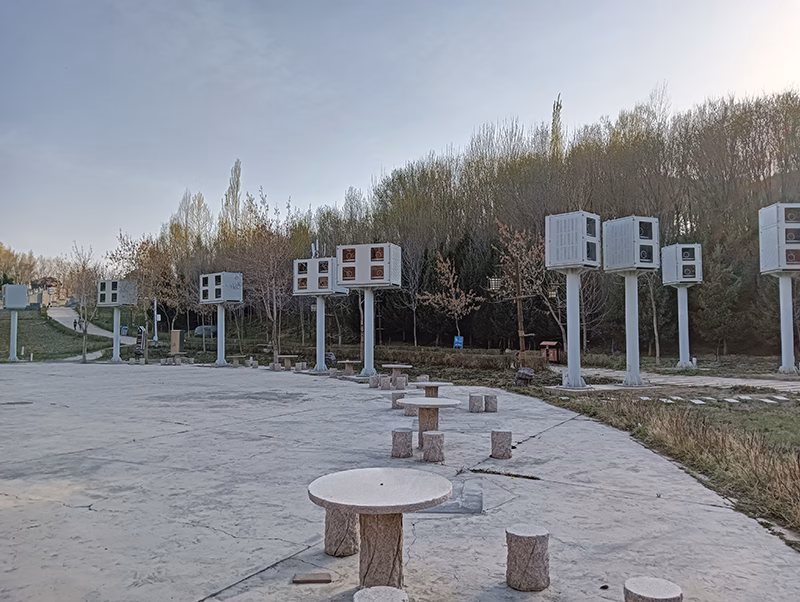

REAL PHOTOS OF INTALLATION AND DELIVERY

PROJECTOR COMPATIBILITY & PERFORMANCE

Supported Projector Classes

• 20,000-25,000 Lumen Class: Epson CB-PU series, Panasonic PT-RZ series

• 26,000-35,000 Lumen Class: Christie Griffyn, Barco UDX series

• 30,000-40,000 Lumen Class: Panasonic PT-RQ series, Sony GTZ series

Performance Output Range

• Dual Housing: 40,000-80,000 total lumens

• Triple Housing: 60,000-120,000 total lumens

• Quad Housing: 80,000-160,000 total lumens

• Multi-Housing Arrays: Scalable to 500,000+ lumens

APPLICATIONS BY CONFIGURATION

Dual Housing Applications

• Medium-scale architectural mapping

• Outdoor events and festivals

• Corporate installations

• Museum and gallery exhibits

Triple Housing Applications

• Large-scale building facades

• Theme park attractions

• Stadium and arena projections

• Major concert tours

Quad Housing Applications

• Monumental architectural mapping

• Mega-event main stages

• Immersive 360° environments

• High-security simulation facilities

INSTALLATION & DEPLOYMENT

Pole Foundation Options

• Permanent: Concrete pier with embedded mounting flange

• Semi-Permanent: Bolt-down base plate

• Temporary: Ballasted base with water/sand weights

Configuration Scenarios

1. Single Housing Setup: One Quad, Triple, or Dual housing on pole

2. Stacked Configuration: Multiple housings vertically arranged

3. Radial Configuration: Housings mounted at different angles around pole

4. Mixed Array: Different housing types on same installation

CONTROL & INTEGRATION

Unified Management System

• Central Controller: Manages all housings from single interface

• Automated Alignment: Motorized mounts with geometric correction

• Power Sequencing: Coordinated startup/shutdown across array

Monitoring & Diagnostics

• Environmental Sensors: Temperature, humidity, air quality

• Projector Health: Lamp/laser hours, filter status, error reporting

• Remote Access: Web-based dashboard for system monitoring

SAFETY & MAINTENANCE

Service Features

• Front Access Panels: Full projector access without housing removal

• Hot-Swap Capability: Replace projectors during operation (with redundancy)

• Modular Components: Easy replacement of fans, filters, and controllers

Safety Systems

• Fall Arrest Points: Integrated on pole and housings

• Emergency Shutdown: Manual override at pole base

• Fire Suppression: Optional FM-200 system available

CUSTOMIZATION OPTIONS

Pole Customization

• Height: 3m to 15m in 0.5m increments

• Finish: Powder coat colors, special textures, or camouflage patterns

• Accessories: Integrated lighting, camera mounts, signage brackets

Housing Modifications

• Color Matching: Custom powder coat to blend with environment

• Specialty Windows: Anti-reflective, heated, or security glass

• Additional Ports: Extra connections for peripherals

WHY CHOOSE THE G100-W22 MODULAR SYSTEM?

1. Future-Proof Investment: Upgrade from Dual to Triple to Quad as needs evolve

2. Redundancy Options: Multiple projectors provide backup capability

3. Simplified Logistics: Standardized components reduce spare parts inventory

4. Scalable Performance: Start with what you need, expand as required

5. Unified Maintenance: Common systems across all housing types

6. Architectural Flexibility: Adapt to unique site conditions and requirements

The G100-W22 Modular Array System transforms complex projection challenges into manageable, scalable solutions—delivering professional results with unprecedented flexibility.
