Multi-Projector All-Weather Housing System for Large-Scale 3D Mapping

Unified Environmental Solution for Massive Projection Arrays

Deploy multiple Panasonic PT-RQ35K projectors in perfect synchronization for breathtaking large-scale 3D mapping, protected by a fully integrated all-weather housing system with custom pole mounting infrastructure.

SYSTEM OVERVIEW

This purpose-built housing solution enables the creation of expansive, seamless 3D projection canvases on monumental surfaces—from architectural façades to mountainous terrain—with complete environmental protection and precision alignment capabilities.

CORE INNOVATIONS

Modular Multi-Projector Design

• Scalable Configuration: Housing modules designed to hold 2-8+ Panasonic PT-RQ35K units

• Precision Alignment System: Micro-adjustable mounts for pixel-perfect edge blending

• Unified Thermal Management: Centralized cooling system serving all projector units

• Synchronized Power Distribution: Intelligent power sequencing and monitoring

Custom Pole Mounting Infrastructure

• Engineered Support Structure: Custom-designed poles rated for multi-housing loads

• Wind-Resistant Design: Tested to withstand 150+ km/h winds

• Height Optimization: Adjustable pole heights from 3-15 meters

• Rapid Deployment: Quick-connect components for fast installation

• Foundation Options: Permanent concrete bases or mobile ballast systems

All-Weather Defense System

• IP65-Rated Protection: Complete sealing against dust and water ingress

• Extreme Temperature Operation: -30°C to +50°C ambient range

• Climate Control: Active heating/cooling maintaining 22°C±2°C internal

• Corrosion Protection: Marine-grade materials for coastal installations

• UV-Resistant Components: Long-term outdoor durability

TECHNICAL SPECIFICATIONS

Housing Module (Per Projector)

• Compatibility: Panasonic PT-RQ35K (optimized fit)

• Protection Class: IP65 (dust-tight, water-jet resistant)

• Cooling Capacity: 13000 BTU/h per projector

• Power Requirement: 220-240V, 20A per module

• Dimensions: Custom-sized for projector + maintenance clearance

• Weight: 300-500kg (including projector)

Pole Mounting System

• Load Capacity: 2000kg per pole (configurable)

• Wind Rating: Up to 180 km/h (with safety factor)

• Material: Galvanized steel

• Surface Treatment: Powder coating or hot-dip galvanization

• Height Adjustment: Hydraulic or manual lift systems available

Environmental Performance

• Operating Temperature: -30°C to +50°C (external)

• Internal Regulation: Maintained at 20-25°C

• Humidity Control: Maintained at 40-60% RH

• Noise Level: <55 dB at 1 meter (acoustic options available)

APPLICATION SCENARIOS

Large-Scale 3D Mapping Projects

• Monumental building façades (50-200m width)

• Mountain terrain and rock formations

• Stadium exteriors and arenas

• Historical landmark illumination

• Theme park attraction mapping

Event & Installation Types

• Permanent tourist attraction displays

• Festival and celebration spectacles

• Corporate launch events

• Artistic and cultural exhibitions

• Commercial advertising installations

DEPLOYMENT OPTIONS

Permanent Installations

• Custom-engineered foundation solutions

• Integrated cable conduits and service access

• Long-term maintenance contracts available

• Remote monitoring and control systems

Semi-Permanent / Touring

• Modular rapid-assembly components

• Transport-optimized packaging

• On-site technical support packages

• 24/7 emergency response service

PROJECT SUPPORT SERVICES

1. Site Assessment: Environmental and structural evaluation

2. System Design: Custom configuration for your specific surface

3. Installation Supervision: On-site technical direction

4. Calibration Services: Edge blending and warping setup

5. Maintenance Programs: Scheduled and emergency support

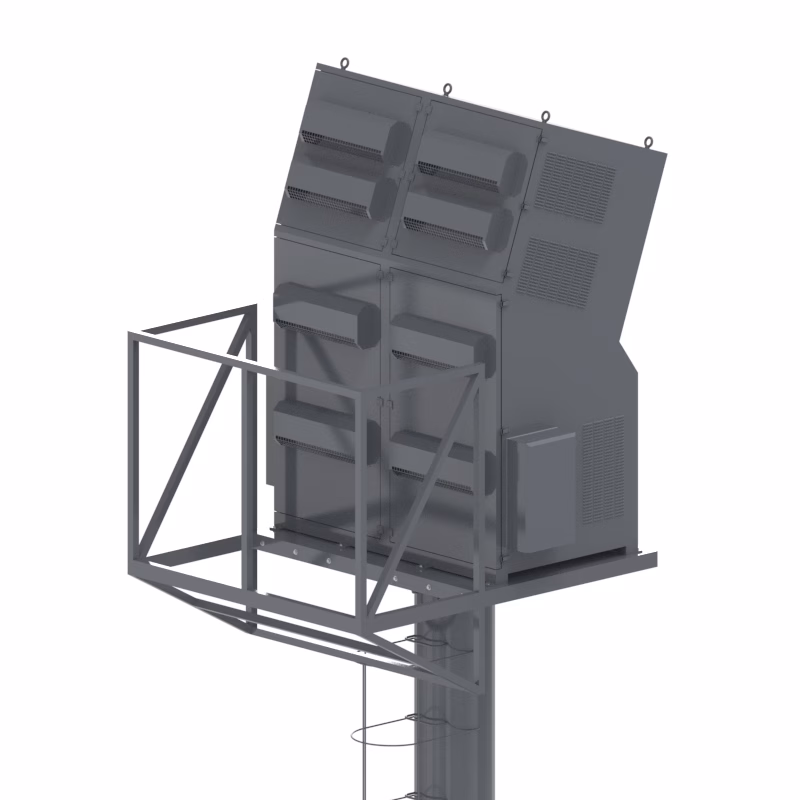

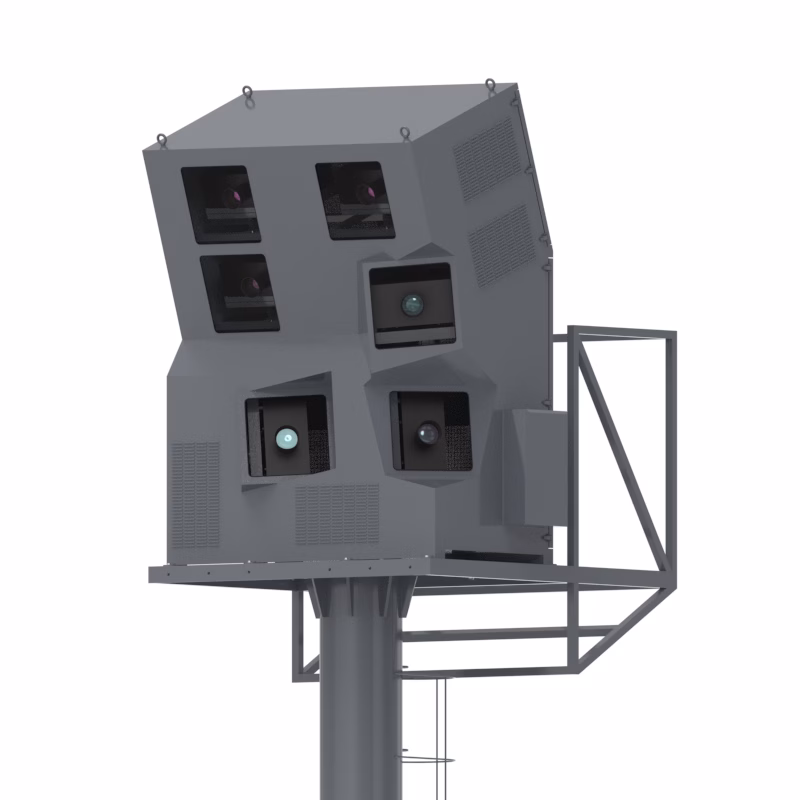

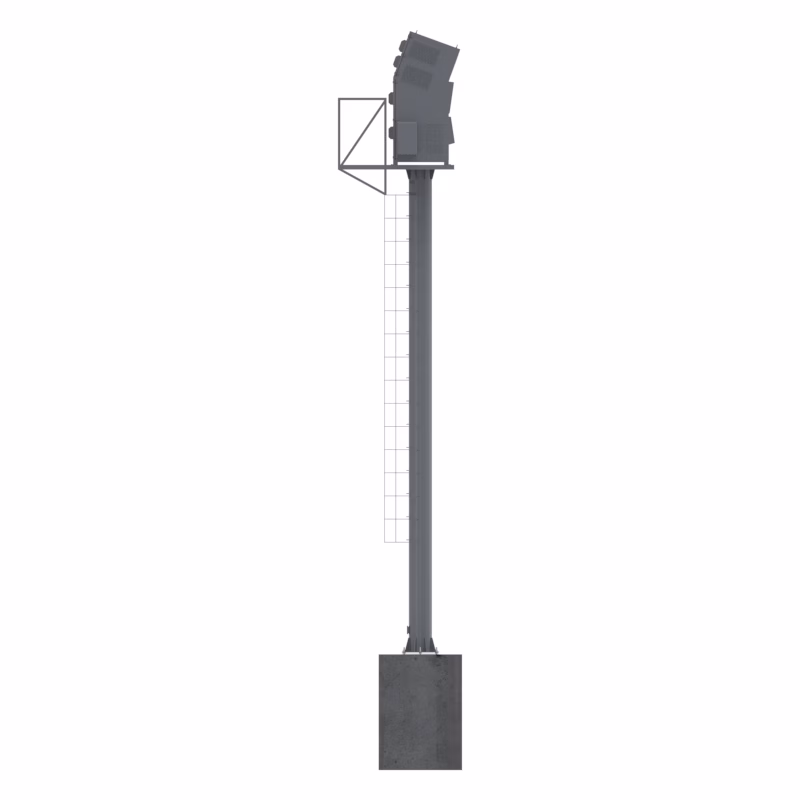

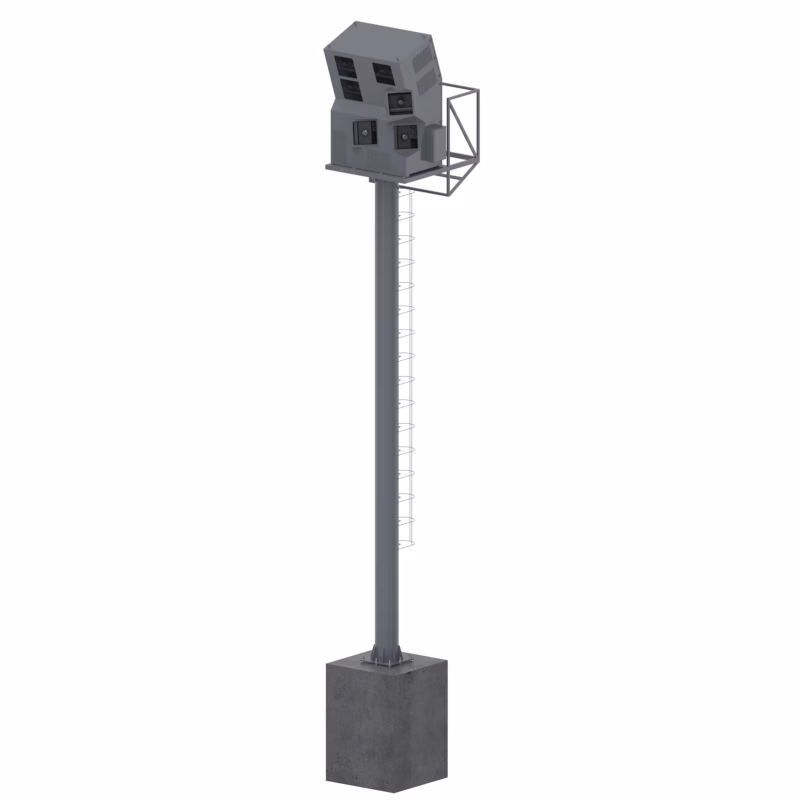

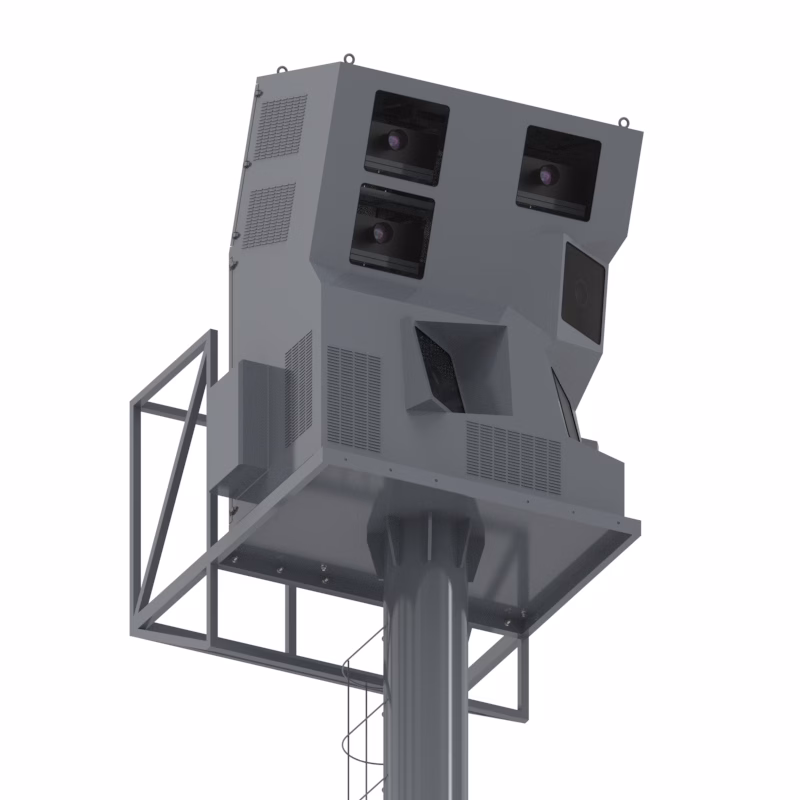

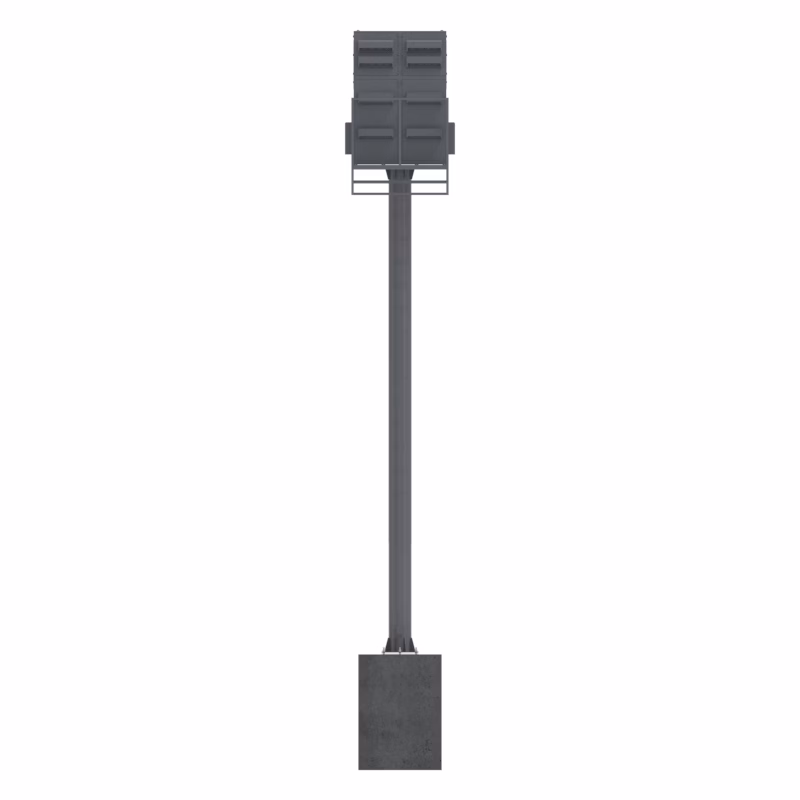

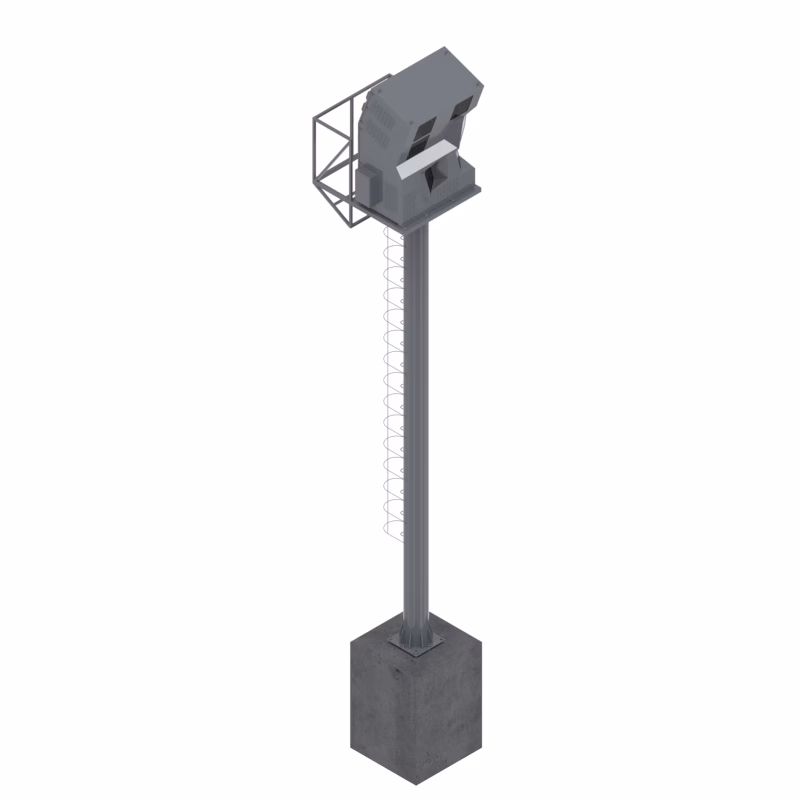

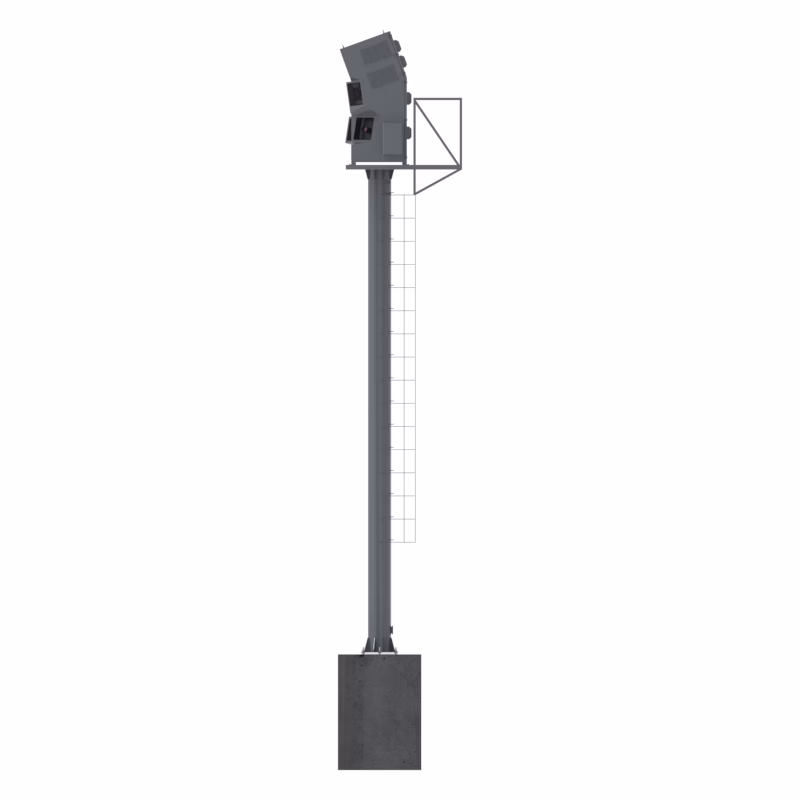

DESIGN DRAWING OF THE HOUSING

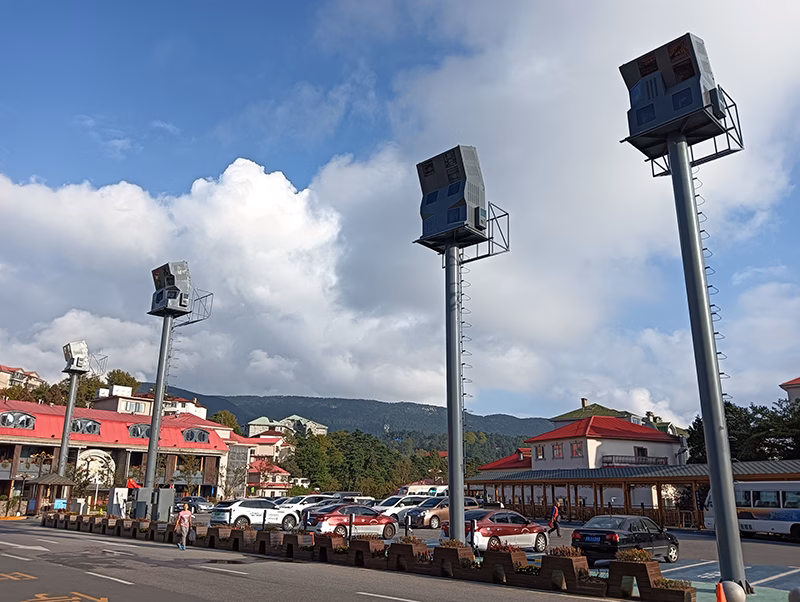

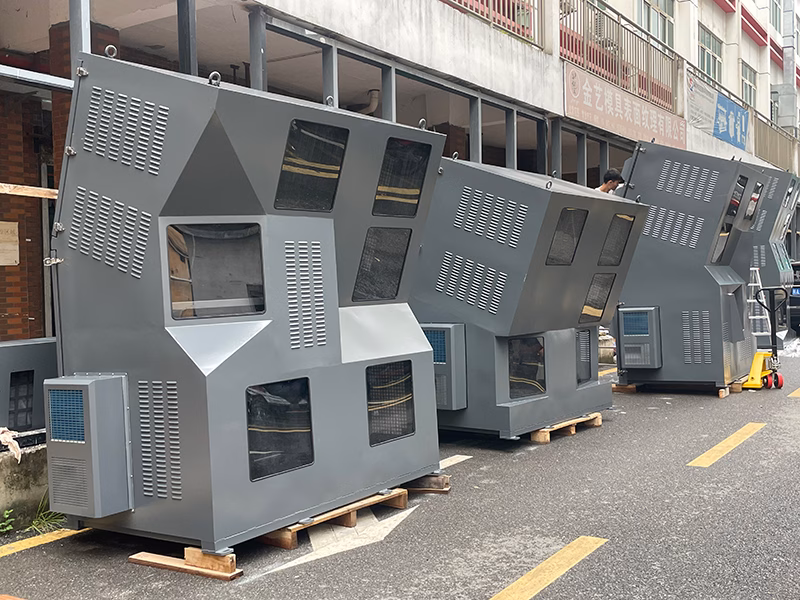

PROJECTOR HOUSING PHOTOS

WHY CHOOSE THIS INTEGRATED SYSTEM?

1. Seamless Integration: All components designed to work together perfectly

2. Scalable Architecture: Start with 2 projectors, expand to 8+ as needed

3. Single-Point Responsibility: One supplier for entire system guarantee

4. Proven Performance: Tested in extreme environments worldwide

5. Future-Proof Design: Accommodates technology upgrades and expansions
