Panasonic PT-RQ35K Air-Forced Weatherproof Thermo Enclosure

Pole-Mounted System for Wall 3D Mapping Shows

35,000 Lumen Laser Brilliance for Architectural Spectacles

Engineered for professional outdoor 3D mapping productions, this Air-Forced Weatherproof Thermo Enclosure is precision-built for the Panasonic PT-RQ35K laser projector. Mounted on a heavy-duty custom pole, this system delivers reliable 35,000-lumen performance in any weather—transforming building facades, monuments, and urban structures into dynamic canvases for breathtaking visual storytelling.

Wall 3D Mapping Optimization

Specialized for Architectural Projection

• Precision Throw Alignment – Optimized for 20–80 meter projection distances

• Geometric Correction Ready – Supports advanced warping for non-flat surfaces

• High-Brightness Penetration – Cuts through urban ambient light with 35,000 laser lumens

• Color Accuracy Preservation – Stable thermal environment maintains true color reproduction

Show-Ready Features

• Rapid Setup Capability – Pre-aligned mounting system reduces on-site calibration time

• Remote Control Access – Adjust focus, zoom, and positioning without physical access

• Content Testing Ports – Built-in access for calibration patterns and alignment tools

• Synchronization Ready – Compatible with show control systems for timed performances

Air-Forced Cooling System

Intelligent Thermal Management

• Dual-Fan Forced Air System – High-volume airflow with variable speed control (200–2,500 RPM)

• Active Temperature Regulation – Maintains internal temperature at 22°C ±2°C

• Wide Operating Range – Functions from -20°C to +50°C ambient conditions

• Condensation Prevention – Heated optical window and humidity control

Cooling Architecture

• Targeted Component Cooling – Separate airflow paths for critical projector elements
• Positive Pressure Design – Prevents dust and moisture ingress
• Energy-Efficient Operation – Fans operate at minimum required speed
• Silent Mode Option – Reduced noise for residential or quiet zone installations

Heavy-Duty Pole Mount System

Engineered for Stability

• Pole Specifications: 250mm diameter galvanized steel, heights 6–12 meters
• Load Capacity: Rated for 200kg (enclosure + projector + environmental loads)
• Vibration Damping: Industrial-grade isolators minimize wind-induced movement
• Cable Management: Internal conduit with waterproof cable glands

Mounting & Adjustment Features

• Tilt Mechanism: ±15° vertical adjustment for optimal throw angle
• 360° Rotation: Manual or optional motorized horizontal positioning
• Quick-Release Design: Enclosure can be lowered for maintenance
• Foundation Options:
  • Permanent: Concrete pier with embedded anchor bolts
  • Semi-Permanent: Bolt-down flange system
  • Temporary: Weighted base plate (500kg ballast capacity)

Technical Specifications

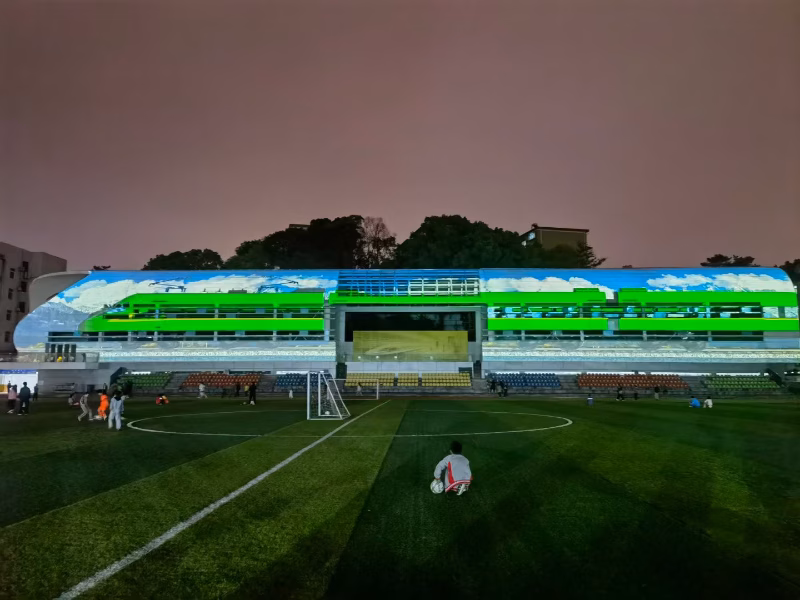

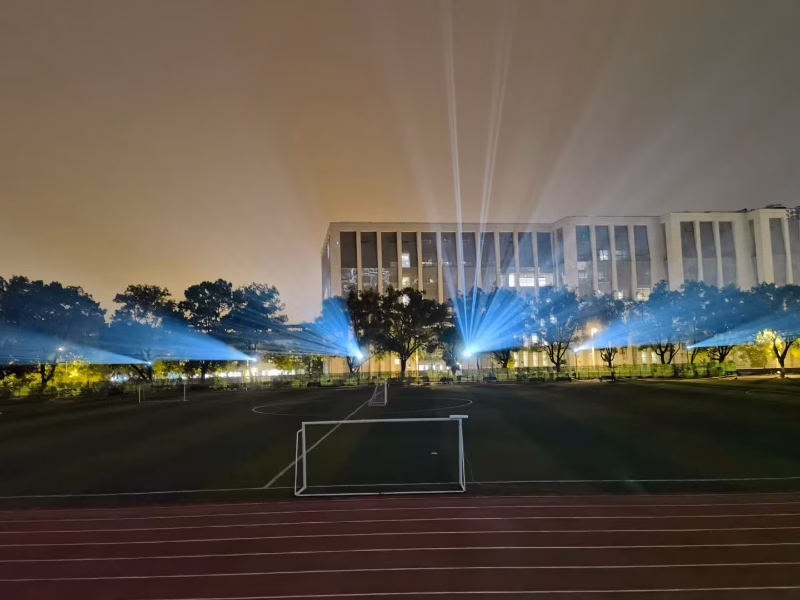

Photos On Installation Site

Application Scenarios

Architectural Projection Mapping

• Building Facade Transformations – Historical buildings, modern architecture
• Monument & Sculpture Illumination – Public art and cultural displays
• Stadium & Arena Exteriors – Sports events and entertainment venues
• Museum & Institutional Projection – Educational and artistic presentations

Event & Production Uses

• Festival Main Stage Backdrops – Music and cultural festivals
• Corporate Launch Events – Product reveals and brand activations
• Public Celebrations – City anniversaries, national holidays, light festivals
• Temporary Art Installations – Gallery exhibitions and public art projects

Installation & Commissioning

Site Requirements

• Power Supply: Dedicated circuit with proper grounding

• Data Connection: Conduit for control and video signals (fiber recommended)

• Access Planning: Space for pole installation and service access

• Safety Considerations: Compliance with local building and electrical codes

Professional Commissioning

1. Site Survey & Planning – Environmental assessment and positioning

2. Pole & Foundation Installation – Structural mounting and alignment

3. Enclosure Mounting – Secure attachment and cable routing

4. System Calibration – Geometric correction and focus alignment

5. Content Integration – 3D mapping alignment and testing

6. Operator Training – System operation and basic troubleshooting

7. Documentation Handover – Manuals, drawings, and warranty information

Safety & Compliance

Structural Safety

• Wind Load Rating: Certified for 130 km/h winds

• Seismic Compliance: Zone 3 design available

• Load Testing: Factory tested to 150% of design load

• Professional Engineering: PE-stamped drawings available

Electrical & Environmental Safety

• GFCI Protection: Integrated ground fault protection

• Surge Protection: Multi-stage suppression on all inputs

• Emergency Shutdown: Local and remote kill switches

• Certifications: CE, UL, IP65 independently verified

Transform architectural surfaces into dynamic storytelling canvases with this professional-grade, all-weather projection system—where cutting-edge technology meets unwavering reliability for unforgettable 3D mapping shows.

More details about Panasonic PT-RQ35K projector enclosure
