D series laser DLP projector
$4,750.00 – $4,800.00
The D series laser DLP projector is a cutting-edge device designed to deliver exceptional image quality and performance. With its advanced laser technology, this projector offers vivid and precise color reproduction, making it ideal for professional presentations or immersive home theater experiences. Experience the future of projection with the D series laser DLP projector.
Lead time:
Quantity (pieces)： 1 – 5 | 6 – 20 | 21 – 50 | > 50
Lead time (days) ：7 | 10 | 12 | To be negotiated
Customization:
Customized logo ( Min. order 1000 pieces )
Customized packaging ( Min. order 1000 pieces )
Graphic customization ( Min. order 1000 pieces )
SKU: CPM0041
Item will be shipped in 1-2 weeks
- Description
- Company profile
- Additional information
- Reviews (0)
- More Offers
- Store Policies
- Inquiries
Description
Description
Essential details
| Private Mold: | NO | Style: | DLP |
| Use: | Business & Education | Portable: | NO |
| Brightness: | 8300 Lumens | Contrast Ratio: | 100000:1 |
| Weight: | 13kg | Resolution: | 1920×1200 |
| Screen size: | 80-300inch | Lamp: | ALPD Laser |
| Lens: | 0.62:1,0.8:1,1.23-1.97:1 | Brand Name: | Appotronics |
| Model Number: | AL-DU835 | Feature: | Excellent picture quality, flexible and lightweight |
| Place of Origin: | China | Warranty(Year): | 1-Year |
| Product Name: | DLP Laser Projector | Display Technology: | DLP+ALPD3.0 |
| Throw Ratio: | 0.62:1,0.8:1,1.23-1.97:1 | Native Resolution: | 1920*1200 |
| Light Source: | ALPD Laser | Light Source Life: | 20000 Hours |
| Keyword: | DLP Laser Projector | Projector oversize: | 490*352*161mm |
| Aspect Ratio: | 16:09 | Application: | Large Venue, 3D Mapping |
Product Description
ALPD – Disruptive light source technology
- Optical Peak ALPD laser display technology has experienced four generations of upgrades, and the number of global patent applications is 2500+.
- ALPD is a key technology for high-brightness image display and has passed FDA laser safety certification to meet international safety standards.
- Laser display equipment based on ALPD light source has the characteristics of high brightness, excellent picture quality, long life, low cost, small size, etc., and has been mature used in laser cinema, engineering projection, security monitoring, home theater, education and teaching, business projection and other fields.
Single-chip DLP laser engineering projector
The RGBY four-stage color wheel achieves high brightness while improving color reproduction
The D series uses the RGBY (red, green, blue and yellow) four-segment color wheel, which has one more segment Y that can be used for color display than the traditional RGBW (red, green, blue and white) four-segment color wheel. The ALPD laser projector has a higher color brightness than other projectors with the same nominal brightness, and the video is more colorful
Full range of resolution upgraded
Color gamut beyond REC.709, accurate color reproduction, higher stability.
Excellent system performance
The full range of products support 3D function
The 3D function is fully upgraded with DLP-linki 3D function, which supports for infrared 3D, and more flexible engineering applications.
Motorized lens shift
NO wait for on and off, lens centered design, support 360° all-round free installation
Supporting optional lens, one-click lens switch to achieve quick installation.
A variety of color correction technology, multi-screen splicing and consistent color.
Built-in four-point correction function
Cinema level light source reliability technology
20,000 hours of proven life
The ALPD laser light source is a light source that has been proven for a long time in theaters.
- The first 2000 lumen laser wall-fitting projector has been running 7*24 hours since October 2011
- The first 20000 lumens DCI ALPD laser film was installed in Hall 11, Shenzhen Happy Coast on July 10, 2014, and has been running for more than 8 years
- More than 27,000 DCI ALPD laser film projectors are in operation in China

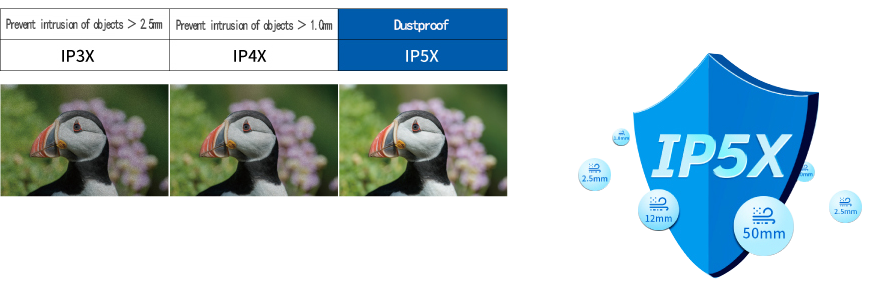

Fully closed optical design, sealed dust-proof structure, no filter, more durable.
Internal cycle color wheel heat dissipation based on new patented technology
ALPD laser green, mercury-free, environmentally friendly.
ALPD technology
-
ALPD laser display technology has been upgraded for four generations, and more than 2500 patents have been filed worldwide.
-
ALPD is the key technology of high brightness image display. It has passed FDA laser safety certification and reached international safety standards.
-
Laser display equipment based on ALPD light source has the characteristics of high brightness, excellent picture quality, long life, low cost, small size and so on. It has been mature used in laser cinema, engineering projection, security monitoring, home theater, education and teaching, morning projection and other fields.
Specifications
| Model | AL-DU635 | AL-DU735 | AL-DU835 | AL-DU935 | |
| Projective technology: | DLP chip*1,DLP projection system | ||||
| Chip type: | 0.67in DMD | ||||
| Resolution: | 1920*1200, WUXGA | ||||
| brightness output: | 6300 lumens/6600lumens(central brightness) | 7300 lumens/7600lumens(central brightness) | 8300lumens/8600lumens(central brightness) | 9000lumens/9300lumens(central brightness) | |
| Light source type: | ALPD laser light source | ||||
| Light source life: | 20000h | ||||
| Contrast: | 100000:1 | ||||
| Evenness: | 90% | ||||
| Color: | REC.709 | ||||
| Edge blending: | Horizon and vertical edge blending | ||||
| Appicable lens: | Lens available, electric zoom and focus,0.62:1,0.81:1,1.23-1.97:1 | ||||
| Projecitivie size: | 80inch -300inch | ||||
| Gemetric correction: | Vertical and horizon direction ±35°four-point correction | ||||
| Light axis move: | Vertical:up±100%,down60%;horizon:±40%，electric | ||||
| Terminal port: | HDMI*2/DVI-D*1/VGA*1/RS-232(IN&OUT)*1/USB*1/RJ-45*1/IR3Dout*1 | ||||
| Supply type: | 100-240V AC,50/60HZ | ||||
| Structure | Size: | 490*352*161mm | |||
| Weight: | 13kg | 14kg | |||
| Noise: | 36dB | ||||
| Work environment | Temp.: | 0℃-40℃(35℃-40℃ energy saving mode) | |||
| Humi.: | 20%-80%；Non-condense | ||||
| *1. Based on ISO21118 standard. The brightness value set by ISO21118 standard is the average value of mass production, and 80% of the brightness value involved here is the lowest value of the product at the factory. The actual brightness will vary depending on the light source mode setting. 2. All white/all black. 3. Ignore the highlights. 4. Includes standard lens; Average, individual differences will make all the difference. 5. The operating temperature is 0℃-45℃, and if the ambient temperature is higher than 35℃, the projector will slightly reduce the rate to protect the projector. 6. The life time stated is the approximate use time between the first use of the projector and the reduction of the brightness of the light source to 50%, based on accelerated test results under simulated use conditions. The said time is not a commitment time, and the actual time will be greatly different from the use mode, environmental conditions, user usage habits and other factors. The brightness attenuation of the projector mainly comes from the attenuation of the laser light source, but it is not equal to the attenuation of the laser light source. When used in low brightness mode, the service life of the laser light source will be effectively extended. | |||||
