F Series Projector7000-9000 lumens

$6,030.00$6,200.00

Excellent creative, reliable performance F Pro series engineering projectors, lightweight upgraded, cinema level reliability.

Lead time:
Quantity (pieces): 1 – 5 | 6 – 20 | 21 – 50 | > 50
Lead time (days) :7 | 10 | 12 | To be negotiated

Customization:
Customized logo ( Min. order 1000 pieces )
Customized packaging ( Min. order 1000 pieces )
Graphic customization ( Min. order 1000 pieces )

F series projector enclosure

Store
SKU: CPM0030
Item will be shipped in 1-2 weeks
  Ask a Question

Description

Essential details

Private Mold: NO Style: DLP
Use: Business & Education Chip Type: 0.67 inch DMD
Brightness: 7000 Lumens Contrast Ratio: 100000:1
Weight: 16.8kg Resolution: 1920×1200 WUXGA
Projection Distance: 55-83cm Lamp: ALPD Laser
Lens: 0.5:1-7.96:1 Brand Name: Appotronics
Model Number: AL-FU705 Size: 465*455*180mm(L*W*H)
Place of Origin: China Warranty(Year): 1-Year
Product Name: Ultra Short Thow Laser Projector Display Technology: DLP
Throw Ratio: 0.5-7.96 Native Resolution: 4K 3840*2160
Light Source: ALPD Laser Light Source Life: 20000 Hours
Keyword: DLP Laser Projector Projection size: 100-150 Inches
Color: REC.709 Application: Large Venue, 3D Mapping

Product Description



Single chip DLP projectors – Comparable to the color effects of three chip DLP projectors

Dynamic light source control up to 100,000:1 contrast

The projector directly controls the light output for faster response. Frame by frame comparative analysis provides high contrast performance with higher light and dark contrast for each frame.

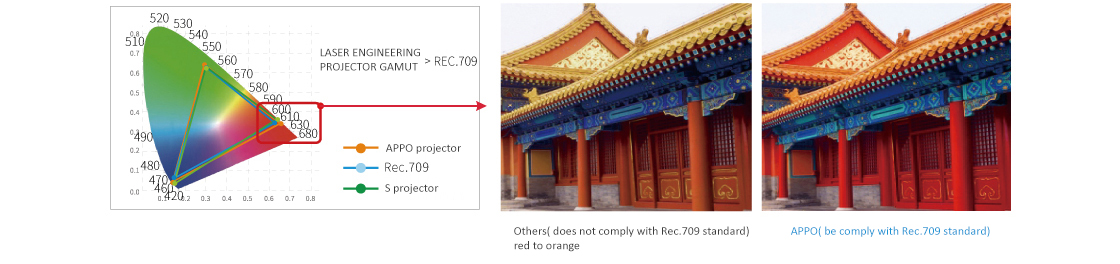

Color gamut beyond Rec.709 for more accurate color reproduction

Color brightness is an important indicator that affects the color performance of the display device, and the lower the color brightness of the machine, the worse the color performance when maintaining the same brightness. Color brightness provides a standard for consumers to evaluate the color performance of projectors.

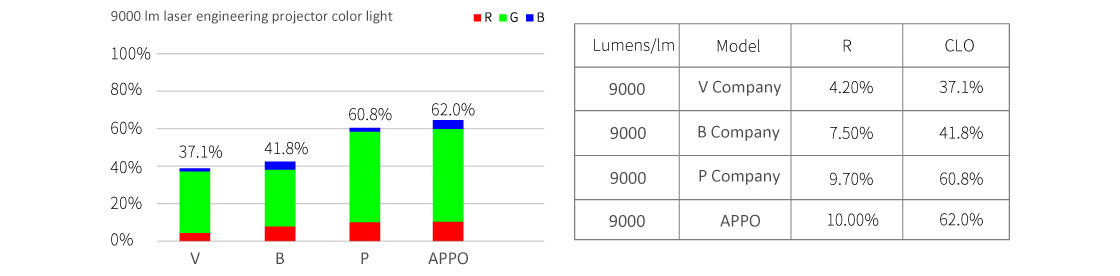

Red light accounted for more than 10%

Most DLP laser projectors red light accounted for less than 7%, the red picture is dim, based on ALPD technology, appo laser projectors red light accounts for 10%, which meets the TI recommended color performance standards.

Increase color brightness to 62% for better color DLP projectors

The full range of Appo projectors improves the color brightness output to 62% under the color gamut standard


Easy installation

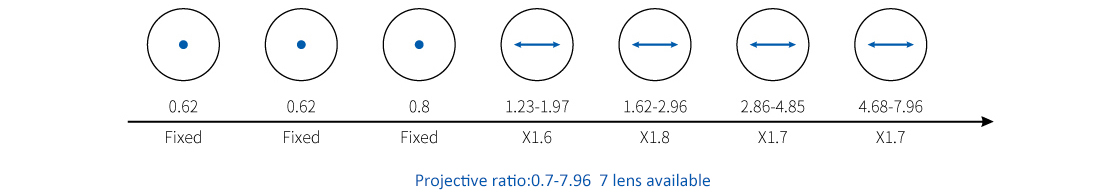

Full range of electric optional lenses

A full range of electric optional 7 lenses available, rich optional lenses make the projector easily adapt to various installation environments, electric lenses can achieve a wide range of horizontal/vertical adjustment, so that installation and test are more convenient and flexible, in the meanwhile it’s equipped with geometric correction, 3D, a variety of test modes and other functions, and is more flexible for use.

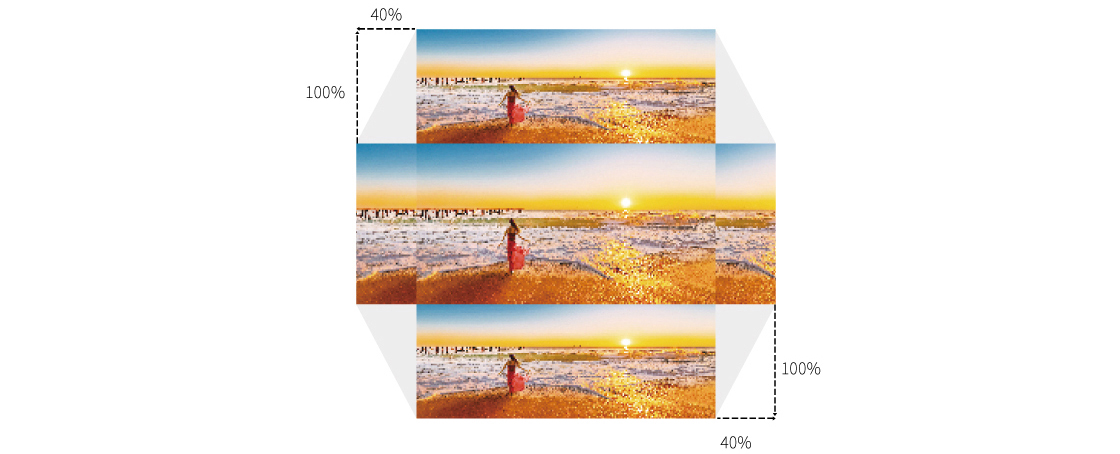

Large lens shift

It supports a wide range of lens shift (vertical: ±100%, horizontal: ±40%, electric) for electric shift/zoom/focus

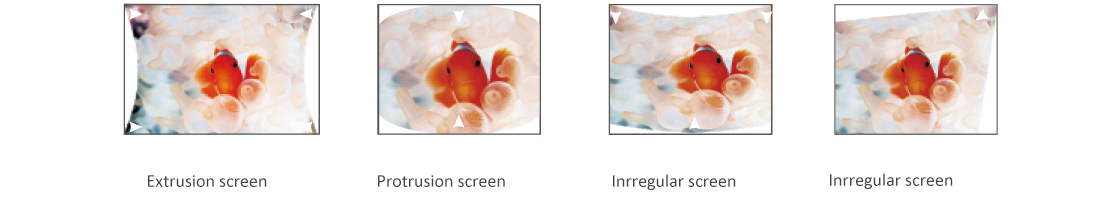

Built-in geometric correction and edge blending

Advanced geometric correction supports linear geometric correction of images projected on screens with spherical, cylindrical or other special curved shapes.

The full range of products support 3D synchronization

3D functions are fully upgraded, 3Dsync interface supports infrared 3D, DLP-link 3D, making the display, commercial and engineering applications more three-dimensional.

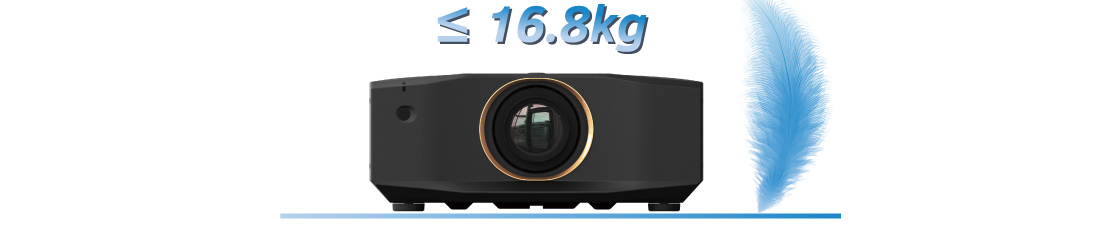

Lightweight design

Professional projectors with exquisite design and weight of only 16.8kg making 360° installation fast and easy.

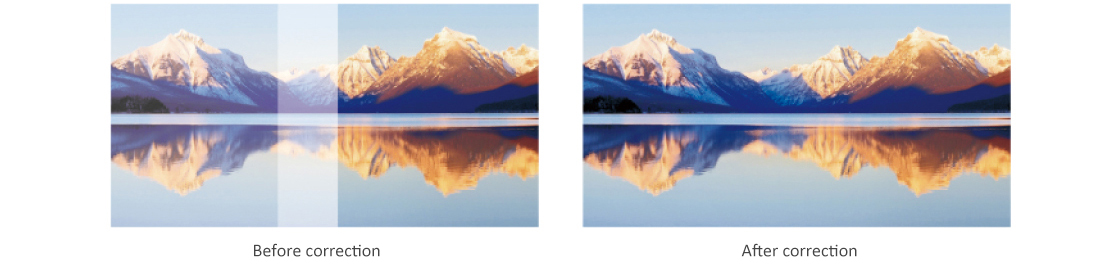

Consistent color and brightness across multiple screens

The drive current is adjustable, which can easily achieve the brightness consistency of the projector splicing scheme. Precisely segment the RGBY drive current to ensure consistent white field color across the screen at any grayscale.

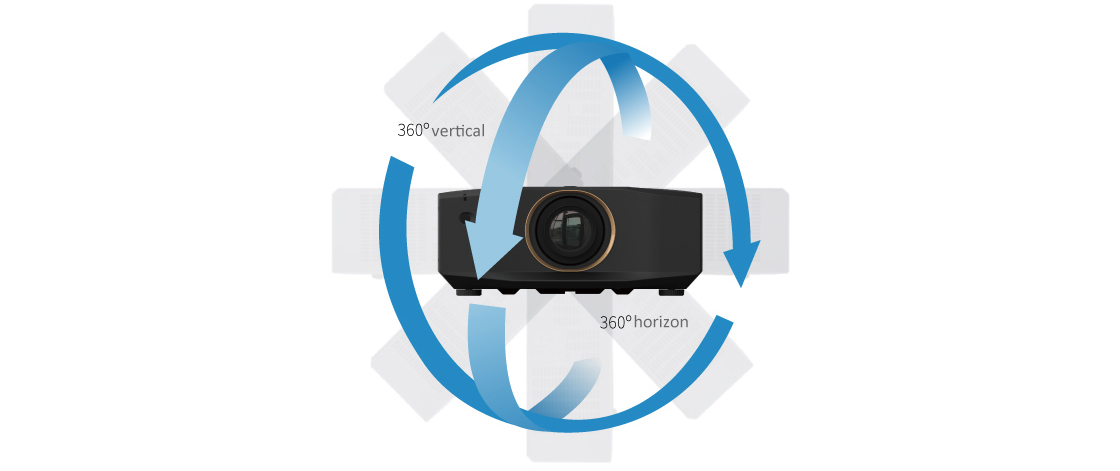

360° installation

360° reverse projection provides new possibilities for the full use of the projector in the space.

Standard HDbase T interface

Port includes HDMI, DVI, 5BNC, etc. One cable (HDbase T interface) for signal transmission and control, up to 100 meters away.


Cinema level light source reliability technology

Fully closed optical design, sealed dust-proof structure, no filter, more durable.

The ALPD laser light source is a light source that has been proven for a long time in theaters.

  • The first 2000 lumen laser wall-fitting projector has been running 7*24 hours since October 2011
  • The first 20000 lumens DCI ALPD laser film was installed in Hall 11, Shenzhen Happy Coast on July 10, 2014, and has been running for more than 8 years
  • More than 27,000 DCI ALPD laser film projectors are in operation in China







Internal cycle color wheel heat dissipation based on new patented technology


Specifications

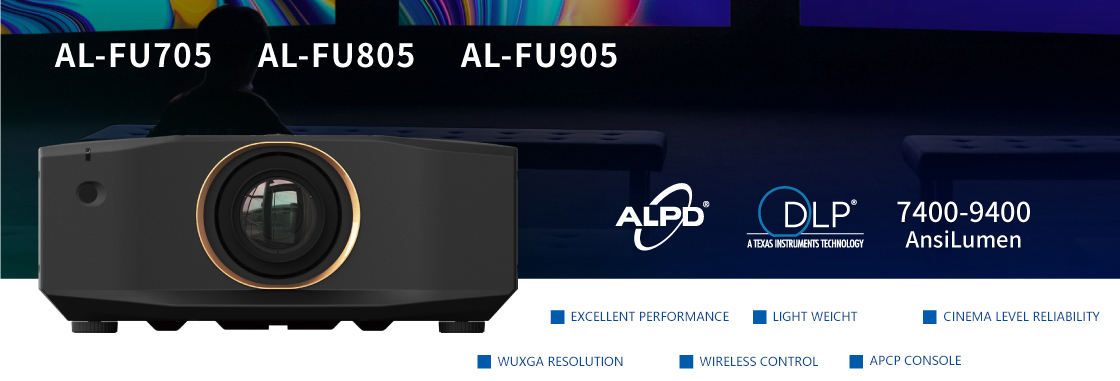

Model AL-FU705 AL-FU805 AL-FU905
Projective technology: DLP chip*1,DLP projection system
Chip type: 0.67 inch DMD
Resolution: 1920*1200, WUXGA
brightness output: 7400 lumens(central brightness)/7700lumens(ANSI) 8400lumens(central brightness)/8700lumens(ANSI) 9000/9400lumens(central brightness)/23000umens(ANSI)
Light source type: ALPD laser light source(laser class:1)
Light source life: 20000h( run type:stardand:100%)
Contrast: 100000:1
Evenness: 90%
Color: REC.709
Edge blending: Horizon and vertical edge blending
Appicable lens: Lens available, electric zoom and focus,Lens available, electric zoom and focus,0.5:1,0.62:1,0.8:1,1.23-1.97:1,1.62-2.96:1,2.86-4.85:1,4.68-7.96:1
Projecitivie size: 40inch -300inch(throwing distance according to lens type
Gemetric correction: Vertical and horizon direction ±20°,four-point correction, nine-point correction
Input resolution Input signals beyond this resolution are compressed to 1920*1200 pixels
Refresh rate: Support WUXGA120 frame/s,4K decipher 4K 60 frame/s
Bandwidth: 600MHZ
Light axis move: Vertical:±100%,horizon:±40%,electric

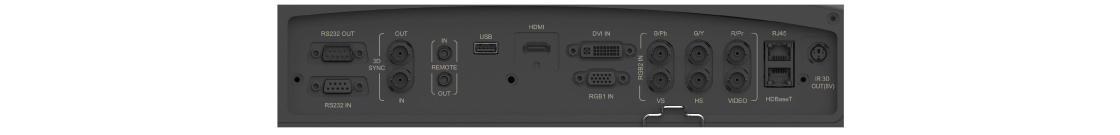

Terminal port: HDMI*1/DVI-D*1/HDBaseT*1/VGA*1/Displayport*1/SDI*2/RS-232(IN&OUT)*2/Remote(IN&OUT)*2/USB*1/RJ-45*1
Supply type: 100-240V AC,50/60HZ
Power Full power: 600w 650w 700w
Standby power: normal <7W(energy saving mode:0.5W)
Structure Size: 465*455*180mm
Weight: 16.8kg
Noise: 49dB
Work environment Temp.: 0℃-40℃(35℃-40℃ energy saving mode)
Humi.: 20%-80%;Non-condense
*1. Based on ISO21118 standard. The brightness value set by ISO21118 standard is the average value of mass production, and 80% of the brightness value involved here is the lowest value of the product at the factory. The actual brightness will vary depending on the light source mode setting. 2. All white/all black. 3. Ignore the highlights. 4. Includes standard lens; Average, individual differences will make all the difference. 5. The operating temperature is 0℃-45℃, and if the ambient temperature is higher than 35℃, the projector will slightly reduce the rate to protect the projector. 6. The life time stated is the approximate use time between the first use of the projector and the reduction of the brightness of the light source to 50%, based on accelerated test results under simulated use conditions. The said time is not a commitment time, and the actual time will be greatly different from the use mode, environmental conditions, user usage habits and other factors. The brightness attenuation of the projector mainly comes from the attenuation of the laser light source, but it is not equal to the attenuation of the laser light source. When used in low brightness mode, the service life of the laser light source will be effectively extended.
