Triple Projector All-Weather Pole-Mount Housing System For Digital Projection TITAN Laser 47000 WU For Architectural 3D Mapping

A monumental triple-projector environmental fortress engineered specifically for Digital Projection TITAN Laser 47000 WU projectors, designed for pole-mounted architectural 3D mapping. This integrated system delivers 141,000 combined lumens in a weatherproof, vibration-dampened, pole-mounted configuration optimized for large-scale outdoor facade projection.

System Specifications

• Housed Projectors: 3 × Digital Projection TITAN Laser 47000 WU (47,000 lumens, WUXGA, 3-Chip DLP Laser)

• Total System Brightness: 141,000 lumens

• Primary Application: Large-scale architectural 3D mapping (buildings 100m+ width)

• Mounting Method: Pole/Tower Mount (vertical column installation)

• Protection Rating: IP66/IP68K (Dust-tight, protected against powerful water jets, temporary immersion up to 1m with pressure)

• Climate Range: -30°C to +50°C (-22°F to 122°F) operation with solar load

• Pole/Tower Height: Custom 6-15m (20-50ft) galvanized steel or aluminum pole

Triple-Projector Array Engineering for 3D Mapping

1. Pole-Mount Structural Design

• Central Monopole Configuration: Three projector housings arranged in a 120° radial array around a central structural pole

• Torsional Stiffness: Pole engineered for <0.1° twist at 150km/h (93mph) wind loading

• Adjustable Projector Arms: Each housing mounted on a 1.5m (5ft) articulated arm with:

  • 360° horizontal rotation

  • ±30° vertical tilt

  • Independent extension/retraction (0.5-1.5m)

• Vibration Isolation: Triple-stage dampening system:

  • Stage 1: Rubber-isolated pole foundation

  • Stage 2: Hydraulic dampers at arm joints

  • Stage 3: Active electronic image stabilization (gyro-compensated)

• Access & Service: Internal ladder/cage system with fall protection; motorized lift platform option

2. Triple-Chamber Climate Control

• Independent Zone Control: Each projector in its own IP68 chamber with dedicated 4000 BTU HVAC

• Shared Heat Redistribution: Heat from central projector can be redirected to outer units in cold weather

• Condensation Prevention: Positive pressure nitrogen inerting system with automatic purge cycles

• Filtration System: Three-stage HEPA filtration (H13) with automated backflush cleaning

• Power Management: Smart load balancing across three-phase power input

Pole/Tower Specifications

• Material: Hot-dip galvanized steel or marine-grade aluminum

• Diameter: 400-600mm (16-24 inches) depending on height

• Foundation: 2-3m (6-10ft) reinforced concrete base with seismic anchors

• Internal Conduits: Four separate 100mm conduits for:

  • Power (3-phase 400V 63A)

  • Fiber optic data (multimode, 12-strand)

  • Control wiring (Ethernet, DMX, RS-485)

  • HVAC refrigerant lines

• Lightning Protection: Integrated Franklin rod with 50mm down conductor to grounding grid

• Access Systems:

  • Internal vertical ladder with safety cage

  • Two service platforms at 1/3 and 2/3 height

  • Motorized lift option for 10m+ poles

Weather Defense Systems

Extreme Wind Protection (Up to 200km/h / 124mph):

• Auto-Stow Mechanism: Projector arms automatically retract and lock into “hurricane position”

• Aerodynamic Fairings: Reduce wind loading by 40%

• Real-Time Monitoring: Anemometer with automatic safety protocols

Precipitation & Ice Protection:

• Heated Optical Domes: 500W heating elements maintain clear surface

• Rotating Wiper System: Three-blade wiper with glycol-based heated fluid

• Snow/Ice Shedding: Ultrasonic vibration at 35kHz prevents accumulation

Thermal Management:

• Solar Load Compensation: External white ceramic coating reflects 85% of solar radiation

• Night Cooling Mode: Passive cooling when ambient drops below 15°C

• Emergency Override: Manual climate control override for extreme conditions

Maintenance Features

• Ground-Level Service: Most maintenance (filter changes, fluid top-ups) performed without climbing

• Quick-Change Projector Carts: Each projector on sliding tray for ground-level servicing

• Automated Cleaning Cycles: Optical windows cleaned on schedule or demand

• Spare Parts Inventory: On-site storage for critical components

Applications

• Skyscraper Projection: Entire building facades (50-150m wide)

• Stadium Wraparound: 270° immersive experiences

• Historical Monument Mapping: Precise detail on intricate architecture

• Theme Park Spectaculars: Nightly shows with multiple building surfaces

• Corporate Headquarters: Branding and event projections

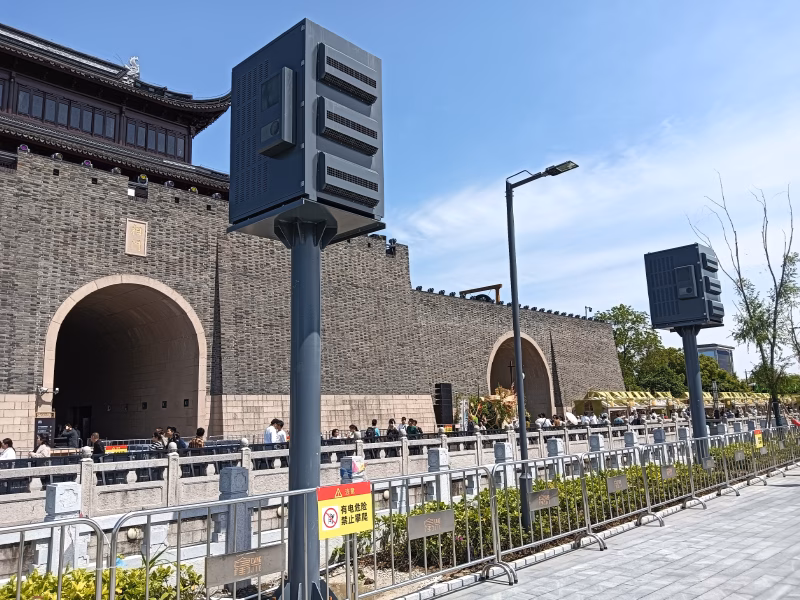

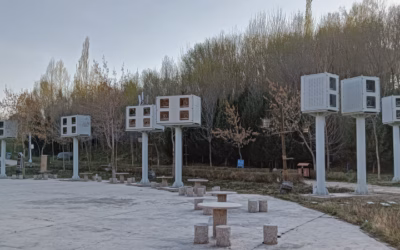

Photos On Installation Site

This triple TITAN 47000 pole-mount system represents the pinnacle of outdoor architectural projection—a turnkey solution that brings cinematic-quality 3D mapping to monumental scales while withstanding decades of harsh environmental exposure. It transforms public spaces into permanent digital canvases capable of nightly spectaculars, regardless of weather conditions.
