VERTICAL-MOUNT AIR-FORCED CLIMATE THERMO BOX FOR CHRISTIE GRIFFYN 4K50-RGB

Specialized Vertical-Mount Protection with Industrial-Grade Airflow Technology

Engineered specifically for vertical installation scenarios, this heavy-duty air-forced climate thermo box delivers exceptional outdoor protection for the Christie Griffyn 4K50-RGB laser projector in vertical orientation applications. Featuring industrial-strength forced-air technology optimized for vertical thermal dynamics, this system ensures reliable performance in demanding permanent vertical installations such as building façades, towers, and specialized projection setups.

Vertical-Mount Optimized Architecture

Gravity-Aware Engineering

• Vertical Airflow Dynamics: Engineered airflow patterns optimized for vertical heat rise—hot air exhaust at top, cool air intake at bottom

• Gravity-Stable Mounting: Reinforced structural design with low center of gravity to prevent sway or vibration

• Vertical Seal Integrity: Enhanced sealing at top edges to prevent water ingress in vertical orientation

• Component Orientation: All internal components specifically mounted and secured for vertical operation

Vertical-Specific Features

• Stack Effect Management: Controls natural convection currents within vertical enclosure

• Condensation Drainage: Integrated moisture channels with gravity-assisted drainage

• Access Panel Placement: Side-mounted service panels for safe vertical access

• Weight Distribution: Balanced internal layout for stable vertical mounting

Industrial Grade Air Forced Climate System

Big Industrial Fan Technology

• Industrial Centrifugal Fan: 600-800 CFM capacity with backward-curved impeller design

• Heavy-Duty Motor: 3-phase or EC motor with IP55 rating, rated for continuous 24/7 operation

• Variable Speed Control: 10-100% speed adjustment with soft-start functionality

• Vibration Isolation: Spring-mounted fan assembly with flexible couplings

Vertical Airflow Management

• Bottom-to-Top Flow: Cool air enters bottom filtered intake, flows across projector, exits top exhaust

• Zoned Cooling: Separate airflow channels for laser engine, electronics, and optical components

• Air Velocity Control: Adjustable baffles to optimize airflow for vertical orientation

• Pressure Balancing: Maintains positive pressure despite vertical stack effect

Construction & Protection Specifications

Heavy-Duty Enclosure Design

• Materials: 3.5mm structural steel with powder coating or 4mm marine aluminum

• Frame Reinforcement: Additional structural ribs and gussets for vertical load support

• Mounting System: Integrated lifting lugs and multiple mounting plate options

• Weight Capacity: Designed to support projector + 50% safety margin in vertical orientation

IP65 Vertical Protection

• Top Rain Hood: Extended overhang with drip edge and water diversion channels

• Bottom Sealed Intake: Elevated intake with splash guard and insect screen

• Side Panel Sealing: Double-gasket system with compression latches

• Cable Entry: Bottom-entry sealed conduits with drip loops

Optical Assembly for Vertical Use

• Reinforced Window Frame: Additional support for vertical glass panel

• Anti-Reflective Coating: Optimized for common vertical projection angles

• Heating Elements: Full perimeter heating to prevent condensation

• Impact Protection: Tempered safety glass with protective grill option

Climate Management System

Intelligent Temperature Control

• Vertical Thermal Monitoring: Multiple sensors at different heights to monitor thermal stratification

• Adaptive Fan Control: Speed adjusts based on vertical temperature gradient

• Overheat Protection: Automatic emergency cooling mode if top temperature exceeds limits

• Cold Start Protocol: Gradual warm-up sequence for vertical cold starts

Filtration System

• Industrial Pre-Filter: Washable metal mesh with large surface area

• HEPA-Grade Filter: 99.97% efficiency at 0.3 microns, vertical orientation optimized

• Activated Carbon Layer: For chemical and odor filtration

• Filter Access: Front-loading filter drawers for easy vertical maintenance

Humidity Management

• Condensation Prevention: Active dew point control with vertical gradient calculation

• Moisture Detection: Sensors at potential condensation points

• Drainage System: Gravity-assisted condensate removal with freeze protection

Technical Specifications

Installation & Mounting

Structural Requirements

• Mounting Surface: Concrete, steel, or reinforced structure

• Load Capacity: Minimum 300 kg dynamic load capacity

• Vibration Consideration: Isolated mounting recommended for high structures

• Access Requirements: Service platform or lift access for maintenance

Installation Sequence

1. Structural Assessment → 2. Mounting Bracket Installation →

2. Lifting and Positioning → 4. Vertical Alignment →

3. Projector Installation → 6. Cable Connection →

4. System Commissioning → 8. Vertical Performance Testing

Safety Features

• Fall Arrest Points: Integrated attachment points for safety harnesses

• Anti-Sway Bracing: Optional cross-bracing for tall installations

• Seismic Restraints: Available for earthquake zones

• Lightning Protection: Grounding system and surge protection

Specialized Vertical Applications

Building Façade Projection

• Close-Mount Capability: Can mount within 300mm of building surface

• Architectural Integration: Custom color matching and finish options

• Minimal Visual Impact: Slim profile for discreet installation

Tower & Monument Projection

• Height Optimized: Designed for elevated installations

• Wind Resistance: Aerodynamic shape reduces wind loading

• Remote Access: Designed for limited maintenance access scenarios

Specialized Vertical Setups

• Narrow Alley Projection: Vertical orientation for confined spaces

• Ceiling-to-Floor Projection: Portrait format content applications

• Mobile Vertical Installations: Transportable vertical setups for events

Maintenance & Service

Vertical Maintenance Solutions

• Ground-Level Service: Filter access and basic controls at bottom level

• Service Platform Design: Integrated with building maintenance systems

• Remote Monitoring: Comprehensive sensor data without physical access

• Modular Component Design: Individual components replaceable in vertical position

Maintenance Schedule

• Weekly: Visual inspection (binoculars/remote camera)

• Monthly: Filter condition check (remote sensor data)

• Quarterly: Fan bearing inspection and lubrication

• Annual: Full system inspection and cleaning

Predictive Maintenance

• Vibration Analysis: Remote monitoring of fan and structural vibration

• Bearing Wear Sensors: Predict fan motor bearing failure

• Filter Load Monitoring: Remote pressure differential measurement

• Corrosion Monitoring: Especially important for vertical installations

Performance Optimization

Vertical Thermal Performance

• Heat Rise Management: Prevents hot air recirculation in vertical configuration

• Cold Air Stratification: Manages cool air pooling in vertical orientation

• Solar Load Consideration: Additional cooling for sun-exposed vertical surfaces

• Wind Cooling Effect: Leverages natural wind for additional cooling when safe

Energy Efficiency Features

• Variable Speed Operation: Fan speed adjusts to actual cooling need

• Eco Mode: Reduced operation during projector standby

• Weather-Responsive Control: Adjusts operation based on ambient conditions

• Power Monitoring: Real-time energy consumption tracking

THE VERTICAL SPECIALIST

This Vertical-Mount Air-Forced Climate Thermo Box represents a specialized solution for vertical projection applications where standard enclosures cannot perform optimally. It delivers:

“Industrial-grade cooling performance specifically engineered for vertical orientation—ensuring your Christie Griffyn 4K50-RGB performs flawlessly in vertical installations where thermal management is most challenging.”

For architects, integrators, and venues requiring vertical projection solutions, this system provides the technical sophistication and rugged reliability needed for successful permanent installations. It transforms vertical projection from a technical challenge into a reliable, high-performance solution.

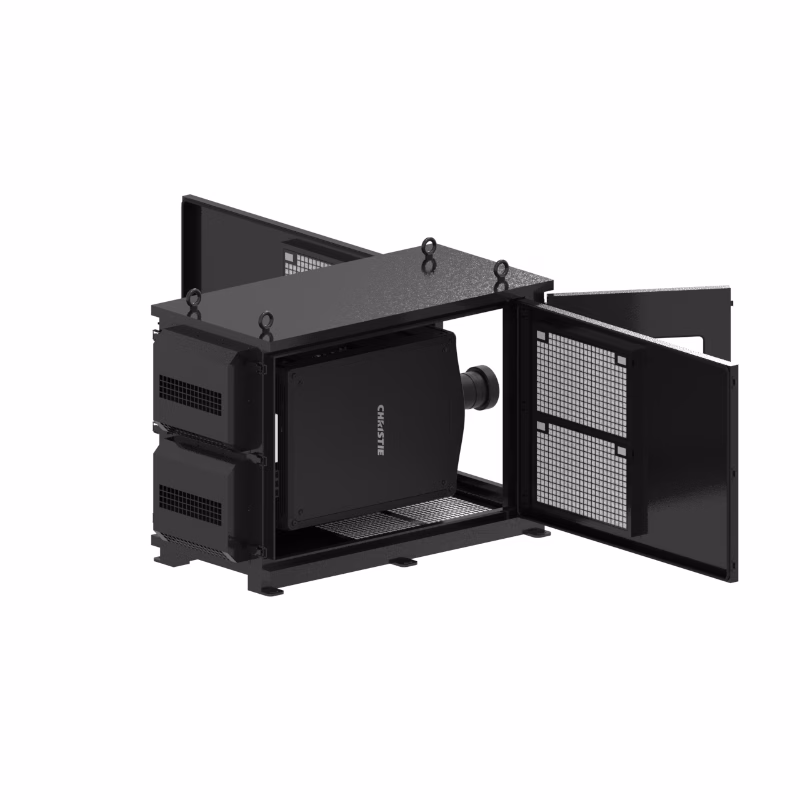

Product Detail

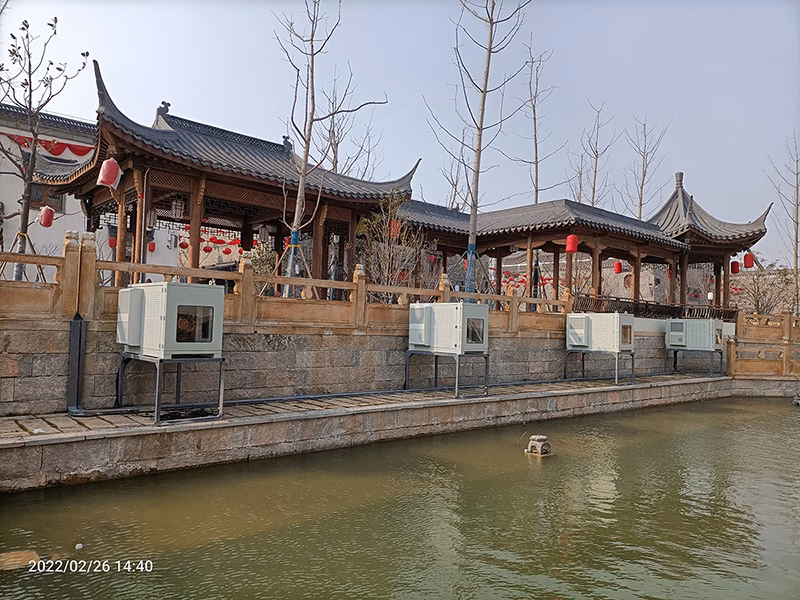

Product Photo On-site

Drawing of Christie Griffyn 4k50-rgb Thermo Box
