Vivitek DU8090Z Multi-Projector All-Weather Housing System
Industrial Air-Conditioned Enclosure with Custom Pole Mount
High-Density, High-Brightness Projection for Extreme Environments
Engineered for large-scale outdoor displays, this Multi-Projector All-Weather Housing System is purpose-built to accommodate multiple Vivitek DU8090Z laser projectors (8,000 lumens) in a single, pole-mounted, climate-controlled enclosure. Equipped with industrial-grade air conditioning and forced-air ventilation, it ensures reliable operation in harsh outdoor conditions—ideal for digital signage, architectural mapping, festivals, and immersive installations.
Multi-Projector Array Architecture
Scalable Enclosure Design
Modular Bay System – Houses 2, 3, or 4 Vivitek DU8090Z projectors in a unified, sealed enclosure
Independent Thermal Zones – Each projector operates in its own cooled compartment
Unified Optical Window – Large, high-transparency glass maintains image clarity across all projectors
Consolidated Cable Management – Single ingress/egress for power, data, and control
Industrial Climate Control System
Dual-Mode Environmental Management
Industrial Air Conditioning Unit – 12,000 BTU compressor-based cooling for high ambient temperatures
Forced-Air Ventilation System – High-static-pressure fans with HEPA filtration for dust control
Heating Mode – Reverse-cycle operation for sub-zero conditions
Thermal Specifications
Cooling Capacity: 12,000 BTU/hr (3.5 kW)
Airflow: 3000 CFM total across all compartments
Temperature Range: -25°C to +50°C ambient (internal maintained at 20–26°C)
Humidity Control: Maintains 30–70% RH, condensation prevention on glass and optics
Custom Pole Mount Installation
Pole Specifications
Height Options: 4m, 6m, 8m, or custom up to 12m
Material: Hot-dip galvanized steel or powder-coated aluminum
Diameter: 200–300mm, with internal cable conduit
Load Rating: Supports up to 350kg (enclosure + full projector array)
Mounting Features
360° Rotation – Manual or motorized positioning
Tilt Adjustment – ±20° for optimal projection angle
Service Platform Option – Integrated ladder and safety rail available
Foundation Types:
Concrete pier (permanent)
Bolt-down flange (semi-permanent)
Ballasted base (temporary)
Applications
Immersive & Event-Based
Festival main stage backdrops
Outdoor concert visuals
Exhibition pavilions
Theme park nighttime shows
Architectural & Public Space
Building façade mapping
Public plaza activations
Monument illumination
Urban art projections

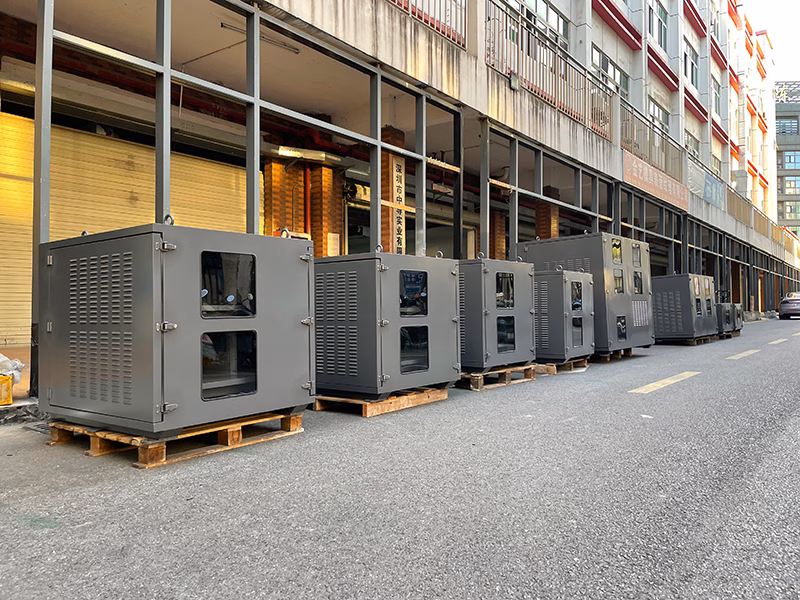

Photos On Delivery and Installation Site
