Epson CB-PU2220B Projector Outdoor Thermo Weatherproof Enclosure – Dual-Projector Pole-Mounted Installation for Interactive Floor Projection

Overview

This case study highlights a professional outdoor projection setup featuring four Epson CB-PU2220B high-brightness laser projectors integrated with two custom-engineered outdoor projector thermo weatherproof enclosures. Each enclosure houses two projectors, delivering a seamless, high-impact ground-interactive projection experience. The entire system is mounted on sturdy steel columns, ensuring optimal viewing angles, security, and long-term durability in exterior environments.

The Challenge

Outdoor projection presents unique technical hurdles:

• Environmental exposure – rain, dust, humidity, and temperature fluctuations

• Thermal management – maintaining stable internal temperatures for reliable projector operation

• Structural integrity – secure mounting at height while allowing service access

• Interactive precision – aligning dual-projector output within each enclosure for a unified ground-projection surface

The client required a turnkey solution that could withstand local weather conditions while delivering consistent, vivid imagery for daytime and nighttime interactive use.

The Solution

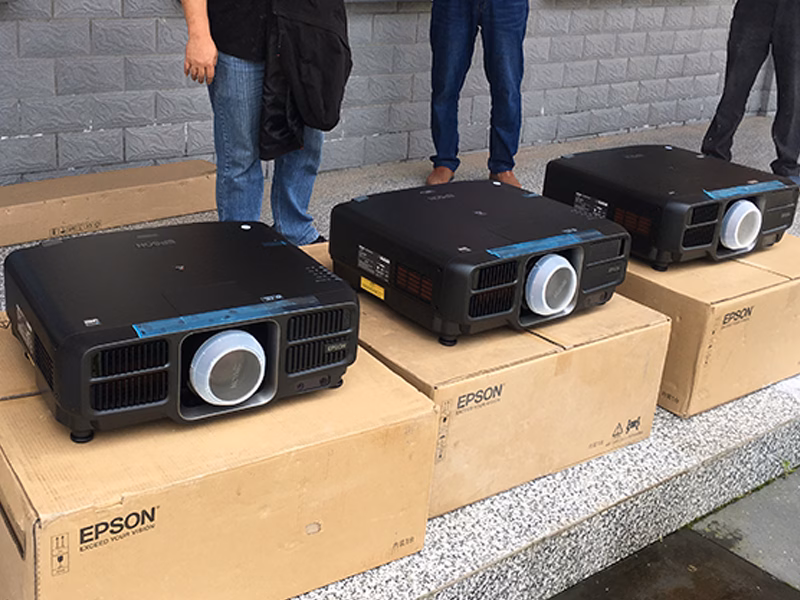

Projectors: Epson CB-PU2220B

The Epson CB-PU2220B was selected for its:

• High lumen output – ensuring visibility even in ambient light conditions

• Laser light source – long life (up to 20,000 hours) with minimal maintenance

• Compact, lightweight design – ideal for dual-unit enclosure mounting

• Advanced image processing – supporting edge blending and geometric correction for interactive floors

Enclosures: Outdoor Thermo Weatherproof Enclosures (Dual-Unit Configuration)

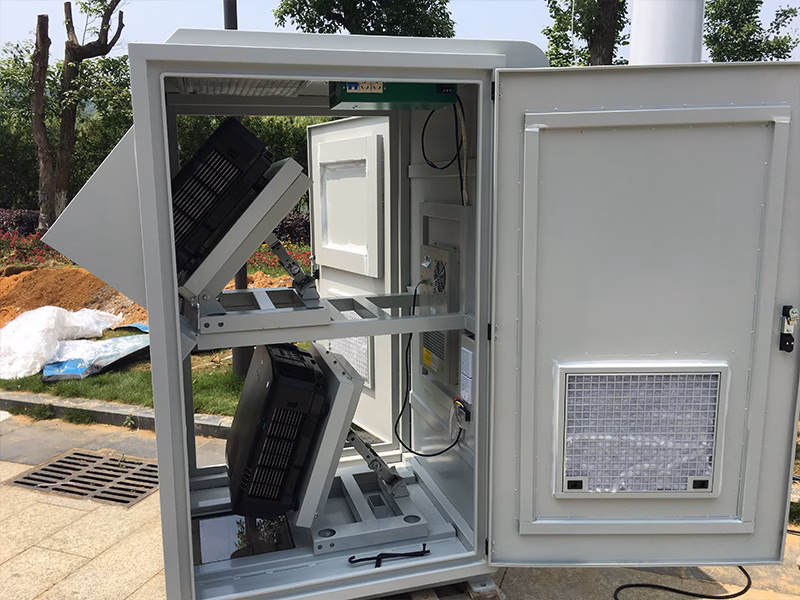

Each outdoor thermo weatherproof enclosure is purpose-built for two CB-PU2220B projectors and includes:

• IP-rated weatherproof construction – protection against rain, dust, and corrosion

• Integrated thermal management system – active cooling/heating to maintain operating temperature between 5°C and 40°C, even in extreme ambient conditions

• Condensation prevention – internal circulation and desiccant/breathing ports

• Lockable access doors – secure and service-friendly

• Cable management glands – weather-sealed entries for power, signal, and control lines

Mounting: Pole-Mounted Design

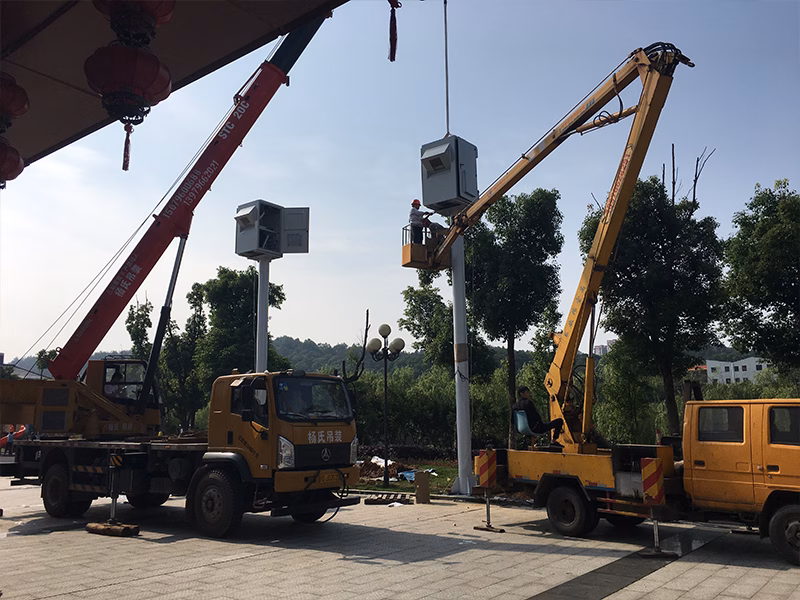

Both enclosures are securely mounted on vertical steel columns at a calculated height to:

• Maximize projection coverage for the ground-interactive zone

• Keep enclosures out of public reach for safety and vandalism resistance

• Allow easy ladder/scissor-lift access for routine maintenance

Interactive Floor Projection

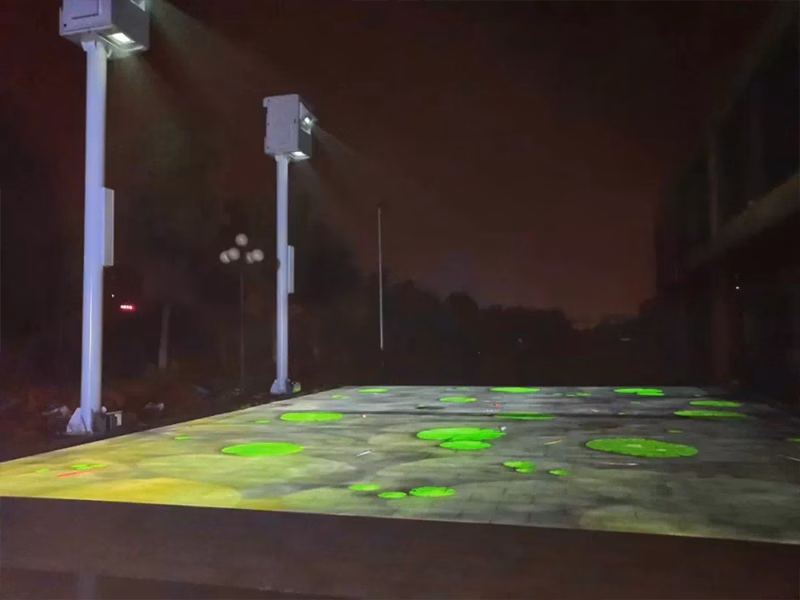

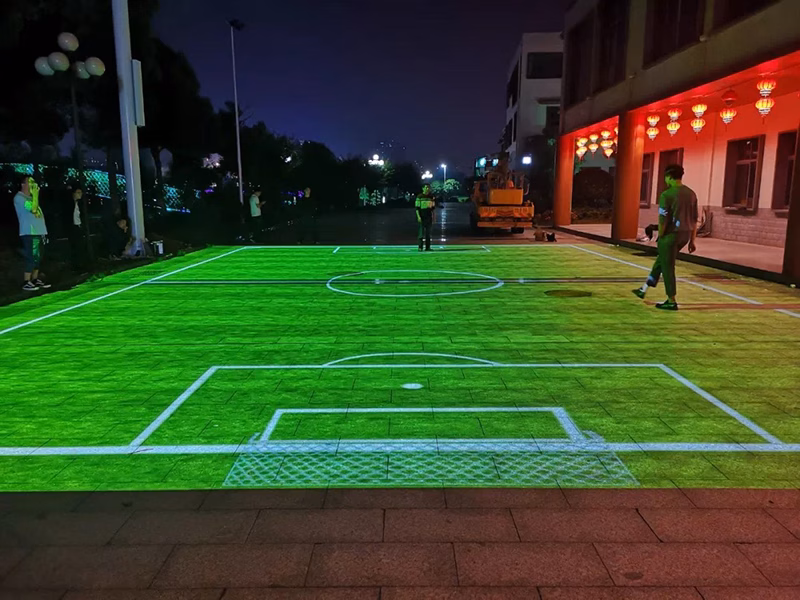

The four projectors (two per enclosure) work in tandem to cover a large interactive floor area. The system supports:

• Real-time motion tracking via IR cameras or depth sensors (integrated with the projection path)

• Blended, edge-matched imagery across the entire floor surface

• Low-latency response for engaging visitor experiences

Installation Highlights

Key Benefits

• Reliability – Enclosures protect projectors from overheating, freezing, moisture, and airborne particulates.

• Cost efficiency – Two projectors per enclosure reduces hardware, cabling, and pole-installation costs.

• Serviceability – Swing-open or lift-off doors allow quick lamp/filter access without dismantling the enclosure.

• Image quality – Stable internal temperature ensures consistent brightness and color uniformity over long runs.

• Scalability – The modular design can be replicated for larger floor areas or multi-zone interactive parks.

Results

Since going live, the installation has delivered:

• Zero weather-related downtime across seasonal changes

• Crisp, vibrant floor animations that respond fluidly to visitor movement

• Positive user engagement metrics (dwell time and interaction counts)

• Low maintenance overhead – only quarterly filter checks and visual inspections

Case Installation on-site Photo

Conclusion

This project demonstrates that Epson CB-PU2220B projectors, when paired with dedicated dual-unit outdoor thermo weatherproof enclosures and pole-mounted infrastructure, provide a robust, high-performance solution for ground-interactive outdoor experiences. Whether for museums, theme parks, retail plazas, or public art installations, this configuration balances protection, performance, and practical serviceability.

For more information about custom outdoor enclosure designs or projector selection for interactive spaces, please contact our team.
