Shenzhen Happy Valley: A New Standard in Immersive Stage Projection with Barco UDX-4K40 Projector Ultimate Protection Housing

Introduction

In the heart of one of China’s most dynamic cities, Shenzhen Happy Valley has long stood as a beacon of thrill and entertainment. However, to stay ahead in a competitive leisure industry, the park needed to elevate its nighttime show from a simple performance to an unforgettable visual spectacle. The goal was ambitious: to integrate high-brightness projection mapping onto a complex stage setup, surviving challenging environmental conditions without sacrificing image quality.

The Challenge

The primary hurdles were threefold:

Extreme Brightness & Scale: The stage required projection that could compete with dynamic stage lighting and remain visible under variable ambient light conditions. The sheer size of the projection surface demanded immense lumen output.
Environmental Durability: Outdoor venues in Shenzhen face high humidity, temperature fluctuations, and dust. Standard projectors would be susceptible to overheating and lens fogging.
Space Constraints: The venue layout dictated that the projectors be mounted on existing structural columns, limiting the available space for massive infrastructure.

The Solution: A Synergy of Power and Precision

To bring this vision to life, the technical team deployed a robust combination of high-end projection and specialized climate control.

1. The Projection Powerhouse: Barco UDX-4K40
The show is driven by 5 units of the Barco UDX-4K40. Renowned for their industry-leading brightness, these 40,000-lumen laser projectors were the only choice for this demanding environment. Key features utilized include:

Native 4K UHD Resolution: Ensuring razor-sharp details across the expansive stage.
High Brightness: Delivering vivid, saturated colors that cut through the ambient light of the park at dusk.
Laser Phosphor Light Source: Guaranteeing a long, maintenance-free operational life and consistent color reproduction over time.

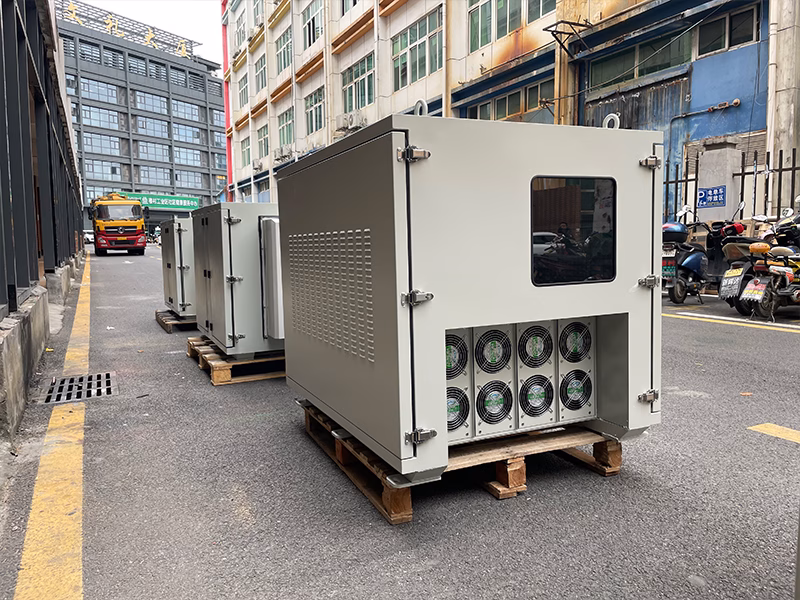

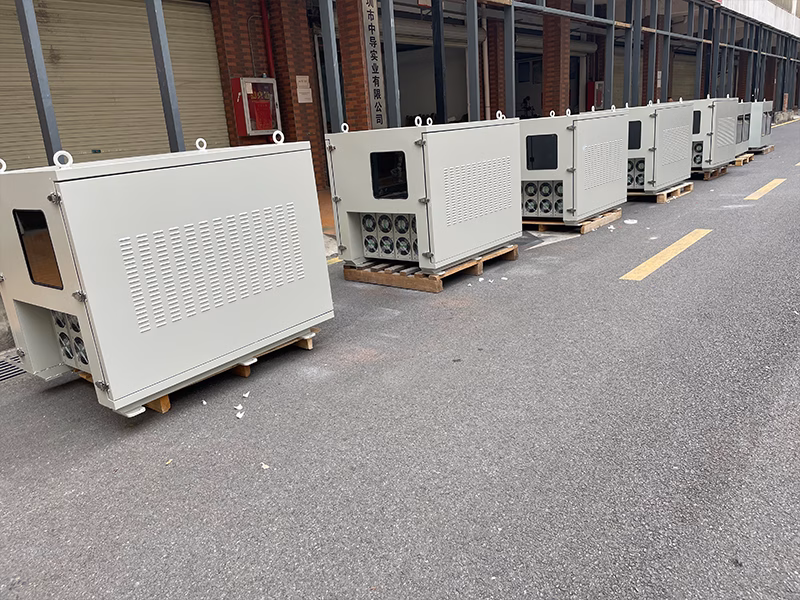

2. The Enabling Technology: Air-Cooled Projector Enclosures
To ensure the longevity and stability of the Barco UDX units in the outdoor environment, the projectors were housed within 5 custom air-cooled projector enclosures. These enclosures are specifically designed for pole-mounted installations and offer:

Thermal Regulation: Maintaining optimal operating temperatures to prevent overheating, even during Shenzhen’s hot summer nights.
Climate Sealing: Protecting the sensitive internal optics from dust, humidity, and sudden rain showers.
Silent Operation: Engineered to minimize noise interference with the show’s audio track.

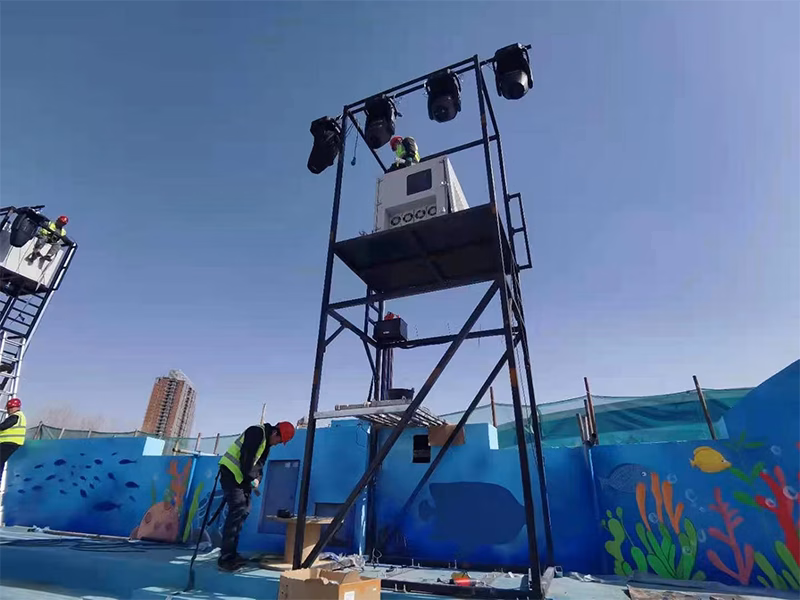

3. The Installation Strategy: Column Mounting
Given the limited floor space in the performance area, the engineers utilized a column mounting strategy. The 5 projector-enclosure units were securely anchored to existing structural pillars within the venue. This approach achieved:

Optimal Throw Distance: Positioning the projectors at the precise angle and distance required to cover the designated projection areas without distortion.
Clear Sightlines: Ensuring the installation did not obstruct audience views or interfere with performer movement.
Cable Management: Allowing for clean, hidden routing of power and signal cables.

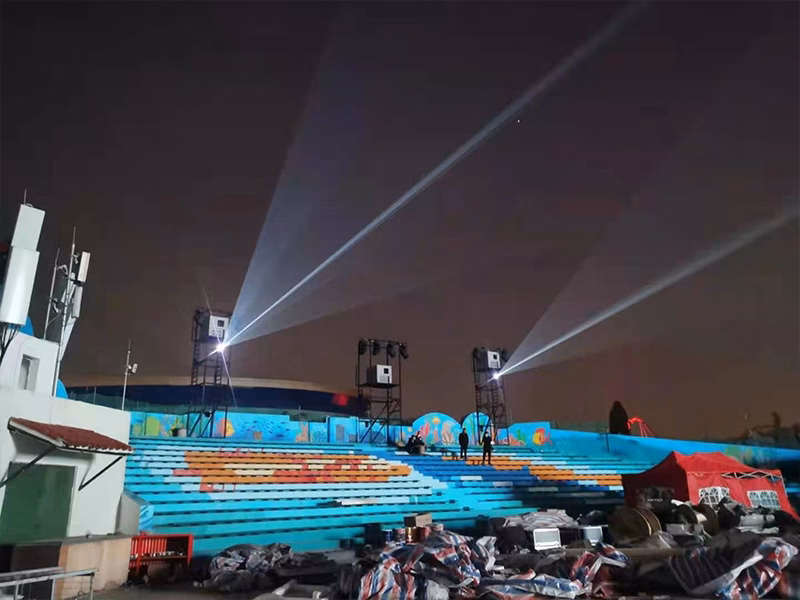

The Result: A Stage Transformed

The installation has completely reinvented the night-time experience at Shenzhen Happy Valley. The stage is no longer a static physical set; it is a living, breathing digital canvas.

Dynamic Storytelling: The projection mapping allows the set to change instantly from a mystical forest to a futuristic cityscape, syncing perfectly with the performers’ choreography.
Enhanced Engagement: The sheer size and brilliance of the 4K imagery create a fully immersive atmosphere, drawing the audience deep into the narrative.
Reliable Performance: Thanks to the dual solution of UDX-4K40 power and robust climate-controlled enclosures, the show runs flawlessly night after night, regardless of the weather.

Conclusion

The Shenzhen Happy Valley project is a testament to the power of combining top-tier projection technology with intelligent engineering. By selecting the Barco UDX-4K40 for its visual prowess and implementing custom air-cooled enclosures for environmental protection, the venue has secured its reputation as a leader in immersive entertainment.
