Large-scale architectural wall projection demands high-performance projectors and robust protection against the elements. This case study documents the successful deployment of 15 climate-controlled outdoor projector enclosures, protecting a mixed fleet of Vivitek RU7900Z and Barco UDM-4K30 projectors in a pole-mounted wall projection installation.
Each enclosure was engineered to provide air cooling, waterproofing, and dustproofing – ensuring uninterrupted operation regardless of weather conditions.
The Project: Wall Projection with Mixed Projector Fleet
The installation called for a large-scale wall projection experience using 15 projectors from two leading manufacturers:
| Projector Model | Type | Key Specifications |
|---|---|---|
| Vivitek RU7900Z | 1-Chip DLP laser projector | 10,000 lumens, WUXGA (1920×1200), IP6X sealed optical engine, 24/7 operation capable |
| Barco UDM-4K30 | 3-Chip DLP laser projector | 25,000–27,000 lumens, native WQXGA (2560×1600), 4K UHD compatible, 360° orientation |
The Vivitek RU7900Z features a laser light source rated for up to 30,000 hours of operation in Eco Mode, with an IP6X sealed optical engine designed to minimize maintenance costs. Its 10,000-lumen brightness and WUXGA resolution make it ideal for mid-to-large venue installations.
The Barco UDM-4K30 delivers up to 25,000 ANSI lumens (27,000 ISO lumens) with a 3-chip DLP system and native WQXGA resolution that supports 4K UHD input. Operating at temperatures from 0°C to 40°C and humidity levels up to 80%, the projector is designed for diverse environmental conditions. Its compact dimensions (725 x 540 x 339 mm, 48 kg) and modular design simplify installation and repair.
Installation overview:
| Item | Detail |
|---|---|
| Projector models | Vivitek RU7900Z & Barco UDM-4K30 |
| Number of projectors | 15 units |
| Number of enclosures | 15 climate-controlled cabinets |
| Mounting method | Pole-mounted |
| Application | Wall projection mapping |
The Challenge: Protecting Two Projector Models in One Unified Solution
Wall projection installations present several challenges, particularly when mixing projector models from different manufacturers:
| Challenge | Impact |
|---|---|
| Mixed form factors | Vivitek RU7900Z (470 x 202 x 517 mm) and Barco UDM-4K30 (725 x 540 x 339 mm) require different internal mounting arrangements |
| Different heat outputs | RU7900Z (575W power consumption) vs UDM-4K30 (up to 2,200W) – each requires tailored cooling capacity |
| Weather exposure | Pole-mounted units are fully exposed to rain, direct sunlight, and airborne dust |
| Dust ingress | Fine particulate matter can clog filters and scratch optical components |
| Service accessibility | Enclosures must allow maintenance access without compromising weather protection |
The client required a unified housing solution that could accommodate both projector models while maintaining identical protection standards across all 15 enclosures.
Our Solution: Air-Cooled Waterproof Dustproof Enclosures
We supplied 15 climate-controlled outdoor projector cabinets, each engineered to house either the Vivitek RU7900Z or the Barco UDM-4K30 with precision-matched mounting and airflow management.
Core Engineering Features
| Feature | Function & Benefit |
|---|---|
| Air cooling system | Integrated fans and ventilation maintain optimal internal temperature; optional air conditioning for high-heat Barco units |
| IP55/IP65 weatherproof rating | Protects against dust ingress and water jets – suitable for exposed pole-mounted installations |
| Dustproof filtration | Sealed design with replaceable filters prevents particulate ingress |
| Adjustable internal mounting cradle | Accommodates both Vivitek RU7900Z (470 x 202 x 517 mm) and Barco UDM-4K30 (725 x 540 x 339 mm) |
| Pole-mount bracket system | Heavy-duty bracket designed for pole diameters with secure U-bolt attachment |
| Pressurised cable entry glands | Maintains seal integrity for power, HDMI, HDBaseT, and SDI cabling |
| High-transmittance optical window | 95%+ transmittance for minimal light loss |
| Service access panels | Enables lens cleaning and maintenance without full enclosure disassembly |
| Temperature monitoring | Optional remote monitoring interface for integration with venue control systems |
Each enclosure was factory-tested with thermal simulators matching the heat dissipation profiles of both projector models – 575W for the RU7900Z and up to 2,200W for the UDM-4K30 – ensuring reliable cooling performance across the full load range.

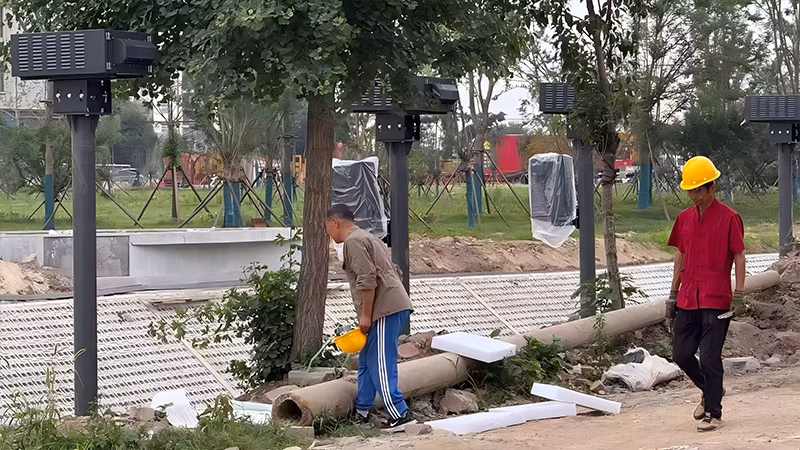

Installation: Pole-Mounted Wall Projection Deployment
The installation process involved coordinating 15 enclosures across the projection area. Key steps included:
Site survey – Each pole was inspected for structural integrity and alignment with the wall projection surface.
Mounting bracket attachment – Brackets were secured to each pole using heavy-duty U-bolts.
Enclosure attachment – Each climate-controlled cabinet was affixed to its bracket and orientated for optimal wall projection angle.
Projector installation – Each projector was mounted inside its enclosure using the adjustable cradle, then connected to power, signal, and control lines through pressurised cable glands.
System testing – Cooling systems were verified, and projectors were aligned for seamless wall imagery.
The Vivitek RU7900Z’s 24/7 operation capability and the Barco UDM-4K30’s 360° installation flexibility were fully leveraged in this installation.
Operational Results
After commissioning, the system has delivered consistent, reliable performance across all 15 projectors:
| Metric | Outcome |
|---|---|
| Thermal stability | Internal temperature maintained within each projector’s optimal operating range – 0–40°C for both models |
| Weather protection | Zero water or dust ingress reported – IP rating maintained |
| Projector uptime | All 15 projectors operational without unscheduled service interventions |
| Image quality | Consistent colour and brightness across the wall projection surface |
| Maintenance access | Service panels enabled efficient maintenance without enclosure removal |
Why Choose Our Projector Enclosures for Mixed Installations?
| Criterion | Our Advantage |
|---|---|
| Multi-model compatibility | Single enclosure design supports Vivitek RU7900Z and Barco UDM-4K30 with adjustable mounts |
| Air cooling + dustproofing | Integrated ventilation and filtration for reliable operation in dusty outdoor conditions |
| Weatherproof construction | IP55/IP65 protection against rain, dust, and moisture |
| Service-first design | Access panels enable maintenance without disassembly |
| Pole-mount ready | Heavy-duty bracketing for secure pole-top installation |
Project Summary
| Item | Detail |
|---|---|
| Application | Large-scale wall projection mapping |
| Projectors | Vivitek RU7900Z (10,000 lm, WUXGA) + Barco UDM-4K30 (25,000–27,000 lm, 4K-capable) |
| Total projectors | 15 units |
| Enclosures supplied | 15 air-cooled, weatherproof, dustproof cabinets |
| Mounting method | Pole-mounted |
| Environmental conditions | Outdoor exposure, direct sunlight, rain, dust |
| Housing protection | IP55/IP65 with active air cooling + dust filtration |
| Operational status | Fully commissioned and operational |

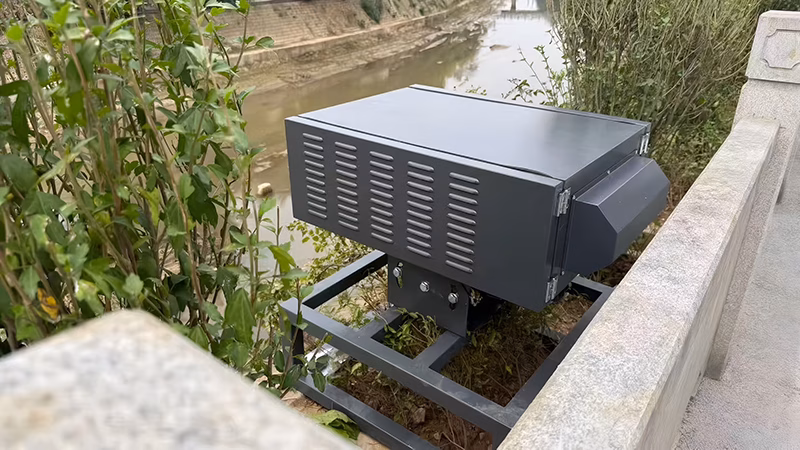

Projector Cabinet Photo
Ready to Protect Your Mixed Projector Installation?
From mixed-fleet deployments to uniform arrays, our climate-controlled projector enclosures are engineered to keep your equipment safe and your shows running. Whether you need air cooling, waterproofing, or dustproofing, we deliver customised solutions for your site conditions.
Contact us to discuss your projector models, mounting requirements, and show schedule – we will design a protection solution that keeps your wall projection flawless.
