Night-Tourism Showcase: 14 Panasonic PT-MZ882 Projectors with Air-Cooled Enclosures – A Complete Project Record

1. Project Background & Challenges

This project is an urban park nighttime projection show, covering an irregular main wall facade and surrounding ground pathways. Three core challenges were identified:

2. Our Solution: 14 Air-Cooled Enclosures + Column Mounting

• Air-Cooling System Design (Core Advantage):
  Each enclosure is equipped with dual-redundant high-CFM turbine fans, governed by an intelligent temperature control board. When internal temperatures exceed preset thresholds, fans automatically ramp up speed to create forced convection. In low-temperature conditions, they reduce speed to prevent condensation. The entire system uses no refrigerant and no compressor—consuming only 1/5 the power of traditional AC-cooled enclosures—significantly reducing long-term electricity costs for the facility operator.

• Structural Layout (Column Mounting):
  Custom stainless-steel clamp brackets secure all 14 enclosures firmly onto existing on-site columns, with mounting heights precisely adjusted based on optical throw paths. Enclosure bodies are constructed from lightweight, high-strength aluminum alloy with anti-corrosion surface treatment—built to withstand outdoor wind and rain.

• Airflow Optimization:
  Intake and exhaust vents feature labyrinth-style rainproof baffles, ensuring maximum airflow while preventing water ingress. Internal guide vanes direct cool air directly toward the PT-MZ882’s air intake and heat sink arrays—achieving “point-to-point” precision cooling.

3. Projection Outcomes

4. Client Value Delivered

• Cooling Efficiency: 30% improvement in thermal performance

• Acoustic Performance: Operating noise below 45dB (non-intrusive for nighttime environments)

• Ingress Protection: Rated IP54 – dustproof and rainproof

• Remote Monitoring: Real-time temperature & humidity data accessible via mobile app for maintenance teams

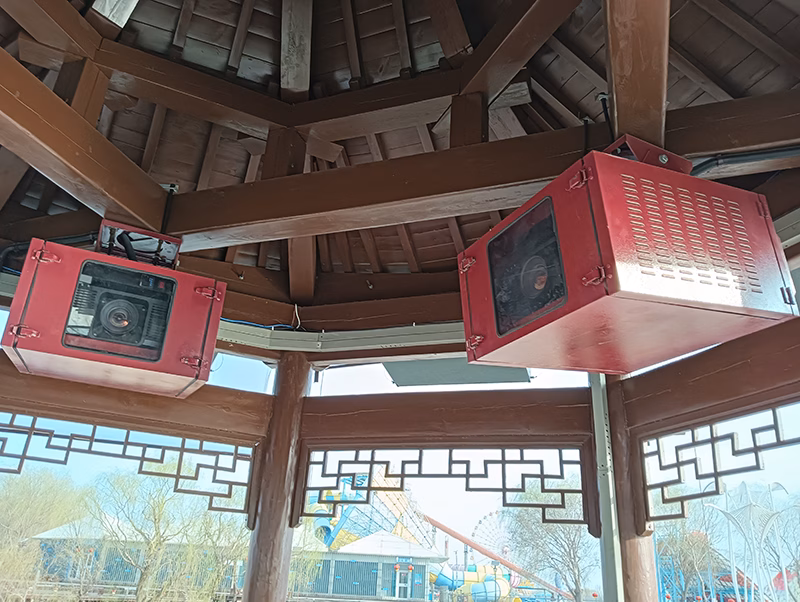

5. Project Site Photos
