Project Overview: High-Power Tower Projection Mapping
This case study showcases a large-scale outdoor architectural projection installation, utilizing four high-brightness Panasonic PT-MZ20K series laser projectors. To achieve precise illumination on a towering structure, the projectors were installed in a side-mounted vertical orientation within two custom-engineered dual-projector thermostatic waterproof housings. This configuration delivered stunning, high-lumen tower mapping with complete environmental resilience.
The Challenge: Vertical Mounting & Extreme Environmental Protection
Tower projection presents unique engineering challenges. Projectors must be mounted vertically (side-mounted) to achieve the correct optical throw for tall structures, while operating in uncontrolled outdoor conditions. The core requirements for this installation were:
Side-Mount Stability: Securely hold two heavy Panasonic PT-MZ20K projectors in a vertical stacked orientation without optical misalignment.
Thermal Management: Maintain optimal operating temperatures despite the projectors’ high laser output and direct sunlight exposure.
Weather Protection: Full resistance against rain, dust, and wind-blown debris.
Precision Optics: Ensure zero distortion or light loss through the enclosure’s optical window.
The Solution: Dual-Projector Side-Mount Thermostatic Enclosure
Our solution was to deploy two dual-projector protective housings, each accommodating a vertically stacked pair of Panasonic PT-MZ20K projectors in a side-mounted configuration. This approach allowed for a compact footprint while delivering the lumen output required for tower illumination.
Key Engineering Features of the Housing:

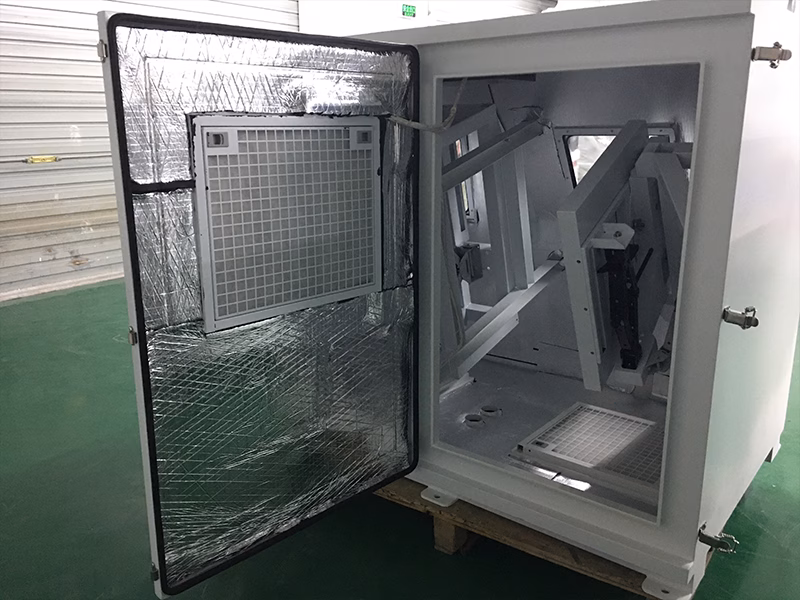

Side-Mount Structural Reinforcement: Heavy-duty internal brackets with anti-vibration mounts lock the projectors securely in a vertical position, preventing gravitational sag and maintaining precise optical alignment for edge-blended tower projections.
Active Thermostatic Cooling System: Dual redundant fans with intelligent temperature sensors maintain internal ambient temperatures within the optimal operating range (10°C–45°C), ensuring the Panasonic PT-MZ20K’s laser engine performs at peak efficiency.
IP55 Waterproof & Dustproof Rating: Fully sealed enclosure with rubber-gasketed access panels protects against rain, dust, and particulate ingress, ensuring reliable operation in adverse weather.
Optical-Grade Glass Window: AR-coated, anti-reflective tempered glass with hydrophobic coating ensures maximum light transmission (minimal lumen loss) and prevents water droplet adhesion on the lens aperture.
Remote Monitoring Interface: Integrated sensors for temperature, humidity, and fan speed allow real-time diagnostics via the building management system (BMS).
Cable Gland Seals: Weatherproof cable entry ports prevent moisture ingress through power and signal lines.
Installation & Configuration
The two housings were positioned at optimal throw distances and heights to cover the tower’s surface. Each housing manages two vertically mounted Panasonic PT-MZ20K projectors, which are optically aligned as part of a 4-projector blended canvas. The side-mount design allowed the projectors to project horizontally onto the tower face, creating a seamless, high-impact 3D mapping display visible from a wide audience area.
Technical Specifications
| Component | Specification |
|---|---|
| Projector Model | Panasonic PT-MZ20K Series (4 Units) |
| Enclosure Solution | 2x Dual-Projector Thermostatic Housings |
| Mounting Orientation | Side-Mounted (Vertical Stack) |
| Protection Rating | IP55 (Waterproof / Dustproof) |
| Thermal Management | Active Thermostatic Control with Dual Redundant Fans |
| Application Type | Outdoor Tower Architectural Projection Mapping |
| Cooling Range | Maintains internal temperature within ±2°C tolerance |
| Optical Window | AR-Coated Tempered Glass with Hydrophobic Coating |

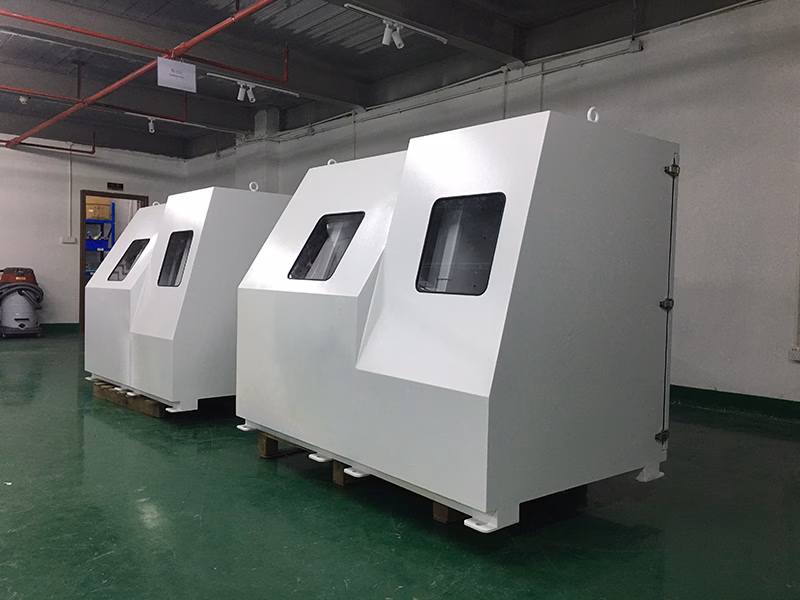

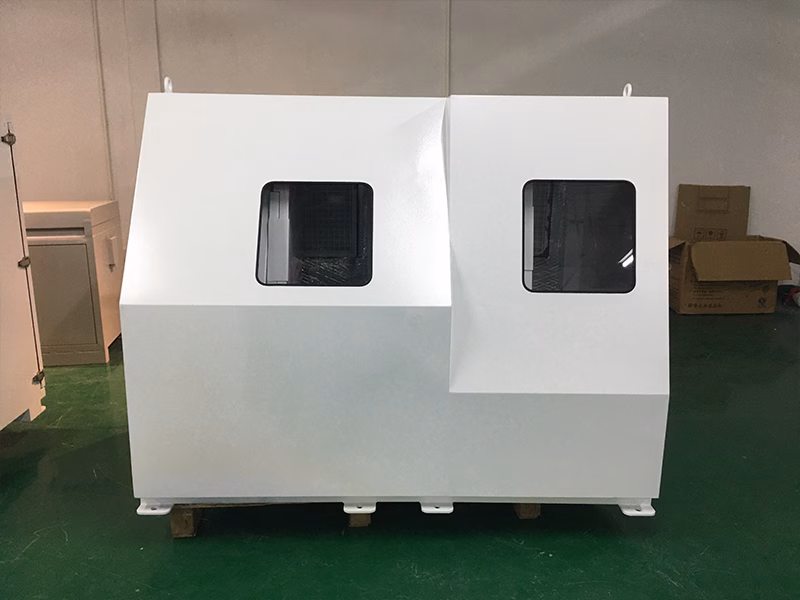

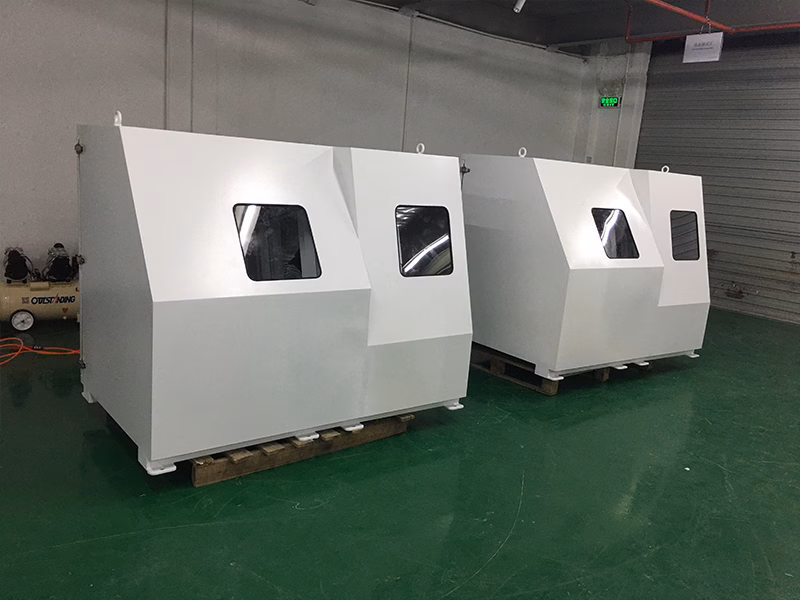

Housing & Housing Installation Site Photo
Why This Configuration Excels
By utilizing a dual-projector side-mount housing, we achieved:
Space Efficiency: Reduced the physical footprint by 50% compared to single-unit enclosures, critical for limited installation zones around the tower base.
Cost Savings: Simplified cabling, mounting infrastructure, and maintenance access.
Visual Precision: The rigid side-mount design ensures that the high-output Panasonic PT-MZ20K laser engines remain perfectly aligned throughout the installation, eliminating pixel shift and color drift.
Reliability: The thermostatic regulation protects the projectors from thermal shutdown, guaranteeing consistent brightness and color accuracy for the duration of the projection event.
Conclusion
This installation demonstrates that complex tower projection mapping can be achieved reliably outdoors with the right protective solutions. Our dual-projector thermostatic waterproof housing, specifically designed for side-mounted configurations, provides a robust, turnkey solution for high-lumen architectural projections. It allows creative teams to focus on immersive content while we manage the demanding outdoor environment.
